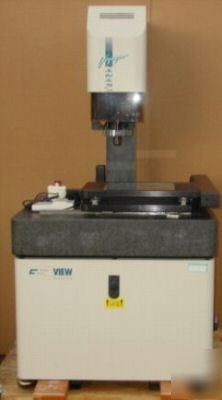

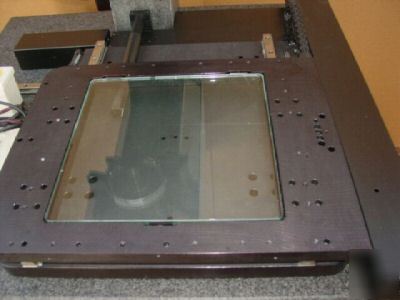

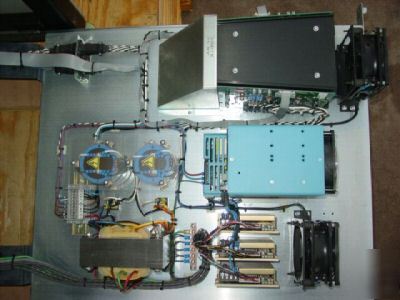

This listing is for a View Engineering CCM.

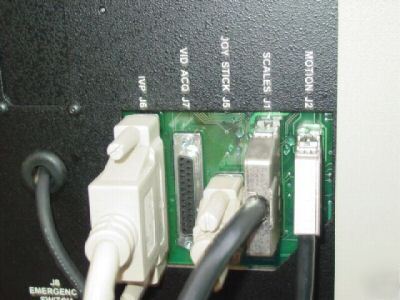

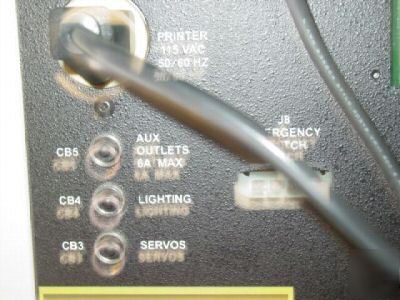

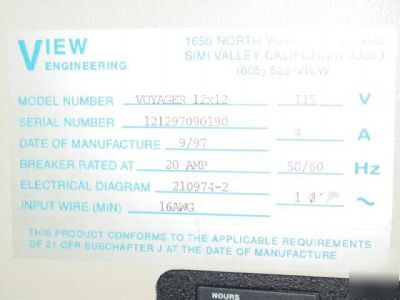

* Electrical specs are displayed in picture below.
___________________________________________________________________________________
Here is a snip from View's brochure...
High-Performance Floor Stand Metrology System
The View Voyagerâ„¢ Model V12x12 is the highest performance non-contact, automated dimensional metrology system available today. In all critical areas - accuracy, repeatability, reproducibility, inspection throughput, programmability, machine-to-machine correlation, and reliability - the
system delivers for the most demanding applications.
Integrating industry-leading image acquisition and processing tools, powerful measurement software, patented lighting and auto-focus technologies, and non-contact laser displacement probe technologies with precision sub-micron motion control, the V12x12 is a truly high-end metrology platform.
* Fast, accurate, & reproducible.

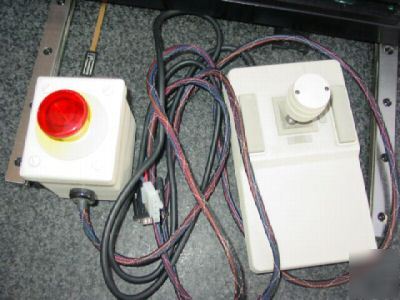

* Fully automatic operation.
* Windows® operating system-easy to program and use.
* Supports a wide range of advanced lighting, optics, & laser technologies.
* Powerful View Metrology Software options.
* Industry leading gage R&R performance.
Measuring Accuracy (at 20° C) U2 (XY plane) = (2.0 + L/200) µm
* U1 (Z-axis) = (1.5 + L/50) µm
* [Where L = measuring length in mm. All specifications apply to a thermally stable machine and artifact at 20° C +/- 0.5° C using a 6.6x objective lens.]
* Measuring Range: 300 x 300 x 150mm (12 x 12 x 6")
* Resolution: 0.1 µm (0.000004")
* Stage Drive System: DC servo motor drives
* Stage Drive Velocity: 254 mm per/sec
* Stage Drive Acceleration: 508 mm per/sec2
* Stage Error Mapping: Non-linear 2D error corrections in XY plane
* Load Capacity: 25kg (55 lbs.)
* Optical System: Standard: Fixed, flat field objective lenses
* Optional: Programmable 4-position lens turret system
* Optical Magnification: Standard: 6.6x (200x on-screen magnification)
* Optional: 1.0x-150x (up to 4200x on-screen magnification)

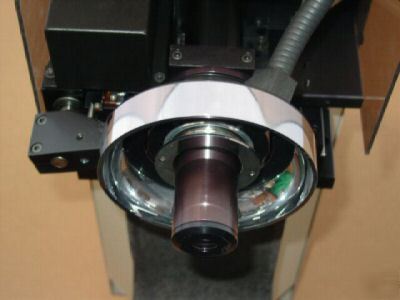

* Illumination Standard: Backlight and coaxial surface illumination.
* Optional: Patented Programmable Ring Light (PRL)
* Optional: Multi-color, 4-quadrant, fixed angle, LED ring light
* Optical Sensor: Digitally processed instrument quality monochrome CCD camera with 756 x 581 pixel array.
* Image Processing: 256, 8-bit, grayscale gradient processing with 5:1 — 50:1 subpixeling (application dependent). Programmable filtering and outlier point removal. Continuous point edge finders, area centroid, histogram, blob (defect), and autofocus tools.
* Software: View Metrology Software (VMS)
___________________________________________________________________________________
This is used, but in good condition. Powers up and work fine. Guranteed to be in proper, working order.
