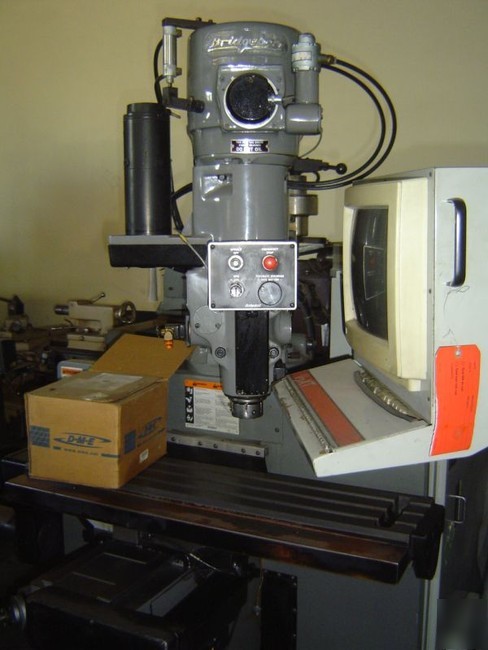

BRIDGEPORT V2XT CNC UNIVERSAL KNEE MILL, (NEW 1992) * Tooling, Attachments and Accessories TABLE WORKING SURFACE.................................................. 9" X 48" TRVELS: LONGITUDINAL (X)................................................... 30" CROSS (Y)......................................................................... 12" VERTICAL, KNEE (Z).......................................................... 15" QUILL................................................................................. 5" DISTANCE, SPINDLE NOSE TO TABLE................................... 18-1/4"/2-1/2" DISTANCE, SPINDLE TO FACE OF COLUMN........................... 18-3/4"/6-3/4" MAX UNIFORM TABLE LOAD.................................................. 300 LBS RAM TRAVEL..........................................................................12" HEAD TILT, LEFT AND RIGHT................................................... 90 DEGREES HEAD TILT, FRONT TO REAR, EACH WAY................................ 45 DEGREES POWER QUILL FEEDS (3) ........................................................ .0015, .003, .006 IPR INF VAR SPINDLE SPEEDS, TWO RANGES LOW .................................................................................... 60-500 RPM HIGH ................................................................................... 500-4,200 RPM SPINDLE TAPER....................................................................... UNIVERSAL KWIK SWITCH MAX COLLET CAPACITY........................................................... 3/4" X&Y AXES MNL/AUTO RAPID FEEDRATE.................................. 100 IPM X&Y AXES FEEDRATE RANGE, INF VAR .................................. 0.1-100 IPM MIN FEEDRATE INCREMENT..................................................... 0.0001" APPROXIMATE WEIGHT ........................................................... 2,340 LBS -BRIDGEPORT SX 2-AXIS CNC CONTROL w/ 9" MONOCHROME -THREE-AXIS DIGITAL READOUT DURING MANUAL OPERATIONS -DC SERVO MOTORS ON BOTH X & Y AXES -UNIVERSAL KWIK SWITCH SPINDLE TAPER -BIJUR AUTOMATIC LUBRICATION SYSTEM TRANSITION FREELY FROM 2-AXIS CNC TO MANUAL MACHINE SOLD EX-SITE, INSPECT IN LOS ANGELES AREA VISIT OUR WEBSITE FOR A COMPLETE LIST OF OUR MACHINES (this posting is the responsibility of the poster) |
s-gillespie@dfwind.com (Stefanie Gillespie) for more information. All emails will be forwarded to the poster's actual email address.
