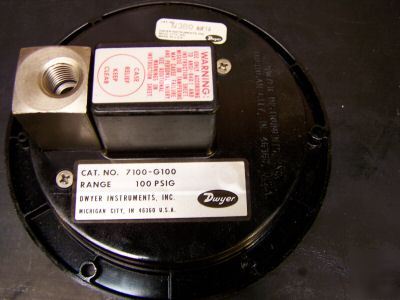

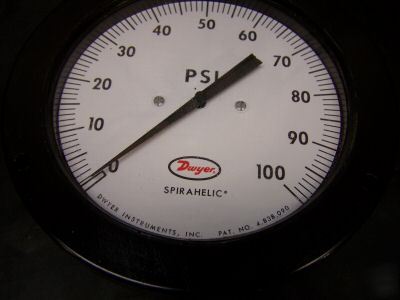

Dwyer spirahelic 100 psi air gas pressure gauge panel


What do you have for sale (write here): Dwyer spirahelic 100 psi air gas pressure gauge panel
New industrial pressure gauge. Reads 0-100 psi +- 2% accuracy. This gauge would be great for a tire changer or air compressor.
Service: Compatible gases & liquids.
Wetted Materials: Grade A Accuracy: Beryllium Copper Bourdon tube, nickel plated brass connection block. Grade 2A Accuracy: Inconel® X-750 alloy Bourdon tube, type 316L SS connection block.
Housing: Black polycarbonate case and clear acrylic cover.
Accuracy: Grade A (2%-1%-2%); Grade 2A (0.5% F.S.).
Pressure Limit: 150% of full scale. Gage will maintain its specifications for overpressures up to 150% maximum range. Normal operation should be between 25% and 75% of full scale.
Temperature Limits: -65 to 180°F (-53.9 to 82.2°C).
Size: 4-1/2" (114.3 mm) dial face - Design conforms to ASME B40.1.
Process Connections: Dual size 1/2" male NPT / 1/4" female NPT, bottom connections.
