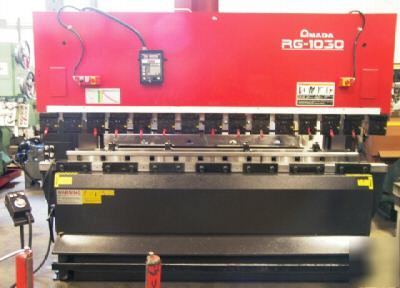

Preowned 122" x 110 Ton AMADA Up Acting Hydraulic Press Brake, Model: RG1030LD S/N 10300005 (New 2000) Tonnage capacity, American Standard #NC9-LD AMADA two-axis CNC control of back gauge and lower beam with RS-232 port. Control holds 99 steps, each step containing L and D axes positioning for a single bend as well as gauge retracts and timer before gauge positions for next bend. Operator's control pedestal with handwheel device for controlling the bend angle by setting the point where the lower beam will stop its upward movement. A digital display indicates position. Manually operated adjustment of back gauge height with (4) adjustable fingers Full complement of sectionalized one touch punch holders Full length foot treadle control of lower beam 15 H.P. 3/60/230-460 volt hydraulic pump motor with electrical controls Machine is wired for 230 volt operation. 123.4 " L-R x 63.4" F-B x 90.6" H (F.O.B. Truck, Hauppauge - Long Island, NY) (this posting is the responsibility of the poster) |
