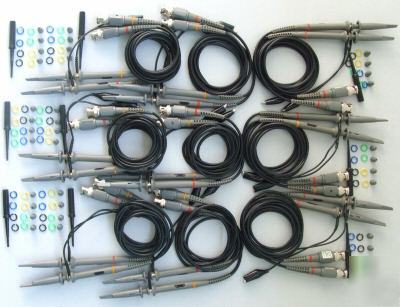

item photo item photo item photo New 100MHZ Oscilloscope probes, X1, X10, 18 units + accessories for Tektronix or HP Oscilloscopes * General Purpose, Bench or Field * Economical, Yet High Quality * High Input Impedence (X10 range) * Useable with scopes having Bandwidth up to 100 MHz * Interchangeable Probe Tip * Compensation range: 15 to 35 pF * Input Capacitance: 1X: 85pF-115pF; 10X: 14.5pF-17.5pF * Input Resistance: 1X: 1Mohm; 10X: 10Mohm; * Bandwidth: 1X: DC-4MHZ, 10X: 100MHz * Attenuation Ration: 1:10 * Operating Temp: -10C-50C * Operating Humidity: <=85% * Maximum Input Voltage: 1X: 150 VDC, 2X: 300 VDC 1) 18 units of 100MHZ Oscilloscope probes with Mini Alligator Clip and ground lead; This web is © Copyright ATI 2005-2007, All Rights Reserved. (this posting is the responsibility of the poster) |
