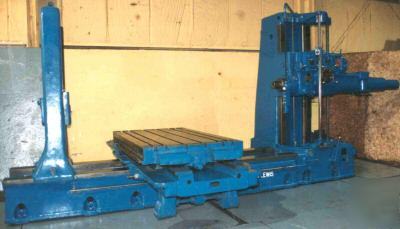

5" GIDDINGS & LEWIS TABLE TYPE HORIZONTAL BORING MILL SERIAL ........................................ 5987 MODEL ......................................... 350T DIAMETER OF SPINDLE ........................... 5" AREA OF TABLE ................................. 84" X 48" SPINDLE SPEEDS ................................ (45) 7-1/2 TO 950 RPM SPINDLE FEEDS STANDARD SPEED .................. (18) .005 TO .250 IPM SPINDLE FEEDS HIGH SPEED ...................... (18) .002 TO .120 IPM TABLE, SADDLE AND HEAD FEEDS .................. (36) .0125 TO 25 IPM CROSS TABLE TRAVEL ............................ 72" SADDLE TRAVEL ................................. 84" VERTICAL TRAVEL OF SPINDLE CARRIER ............ 48" SPINDLE TRAVEL ................................ 36" TAPER IN SPINDLE .............................. #6MT OUTBOARD WAY SUPPORTS ......................... YES OUTBOARD SPINDLE SUPPORT ...................... YES MOTOR ......................................... 25 HORSEPOWER CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!! 1-800/MACHINE (800/622-4463) Photobucket - Video and Image Hosting (this posting is the responsibility of the poster) |
