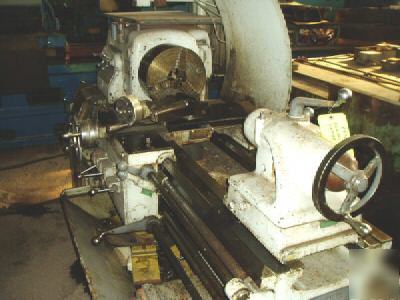

16/18.5" x 30" MONARCH ENGINE LATHE New 1956, Serial No 41171, Model 61, Cat Size 16", Anilam Wizard #350 Digital Readouts Full Length Removeable Coolant-Chip Pan Hole Thru Spindle...................... 1.56" Swing Over Bed Ways, Rated............. 16" Swing Over Bed Ways, Actual............ 18.5" Swing Over Cross-Slide................. 10.5" Distance Between Centers............... 30" Top-Slide Cross-Feed Travel............ 3.75" Tailstock, Spindle Diameter............ 3.375" Tailstock, Spindle Travel.............. 7" (16) Spindle Speeds, Range............. 17 to 700 RPM (66) Carriage Longitudinal Feeds....... .0014 to .0841 IPR (66) Thread Changes, Range............. 2 to 120 TPI Motor Horsepower....................... 7.5 HP Floor Space Required, L x D............ 8'2" x 3'8" Weight, Approximately.................. 4850 LBS PRICE: F.O.B. OUR WAREHOUSE........... $4,950.00 All machines/equipment subject to prior sale. (this posting is the responsibility of the poster) |
tabitha_horne@dfwind.com (Tabitha Horne)
for more information. All emails will be forwarded to the poster's actual email address.
