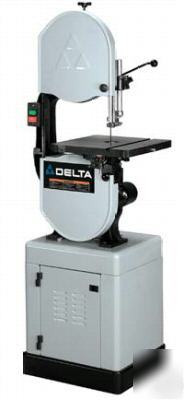

You are looking at a Delta band saw model 28-206. Motor • 1 HP Capacity (ht. under guide) • 6 1/4", 12 1/4" with No. 28-984 Height Attachment installed CAPACITIES • Frame to blade: 13 3/4"(349 mm) • Under guide and wheel: 6 1/4"(159 mm) • Under guide and wheel (with 28-984 height attachment): 12 1/4"(311 mm) • Speed: 28-206: 2500/3000 SFPM (762/914 SMPM) 28-276: 3000 SFPM (914 SMPM) TABLE • Size: 16" X 16"(406 X 406 mm) • Groove: 3/8" X 3/4"(10 X 19 mm) • Tilt:45° R; 3° • Height from floor:42 3/4(1086 mm) BLADE • Width: 3/4"(19 mm) maximum • Length: Maximum: 94"(2388 mm) Minimum: 91 1/2"(2324 mm) Standard: 93 1/2"(2324 mm) • Length (with 28-984 ht. attachment): Maximum: 106"(2692 mm) Minimum: 103 1/2"(2629 mm) Standard: 105"(2667 mm) OVERALL DIMENSIONS • Heigth: 65 1/2"(1664 mm) • Width with open stand: 31"(787 mm) • Front to rear: 17 1/2"(445 mm) WEIGHT • 201 lbs.(91 kg.) Tax will apply in the following states. AR,CA,CO,FL,IL,IA,KS,KY, MI, MN,MO,NE,NJ,NC,OH,OK,SD,TN,WI Thanks for looking,Check out my other items! (this posting is the responsibility of the poster) |
