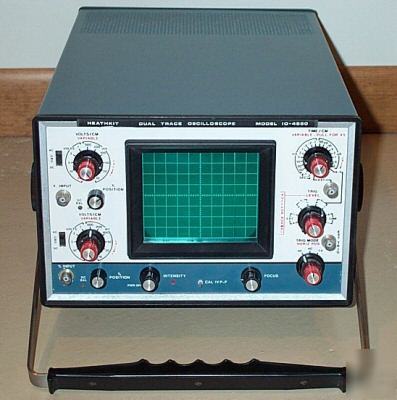

Here we have a great condition Heathkit IO-4550 10MHz Dual-Trace Oscilloscope. This was my first real scope after the hand-me-down Eico I first used (boy did I hate that one!). Haven't used it in a long time though so it's just taking up space (but not collecting dust as it's been covered!). Since I haven't used it in a long time, I gave it a check out and it seems to be fine. Cosmetically there's nothing to note. Operationally it seems fine. You can see in one the pics it displaying a couple of waveforms (that was hard to do with the flash, let me tell you! - I know, I know, dumb to use the flash, but with the camera I have, that's the only option). The only thing I want to point out about this is that these scopes are known for troubles with the HV circuit. I know I had to replace a few parts on it. It is working though as can be seen. This is true of this model in general, it is not a flaw in mine. You may think it dumb of me to tell you this, but I have no desire to pull one over on you. That said, I know I've seen it discussed on the web (there was no web the last time I was using it!) and I think I've seen various upgrades too. The original manual and booklets are included, as shown. Ah, almost forgot but was reminded by the pictures. At one time I modified the unit to have an external blanking input. The circuit has been removed (some time in the past) but the BNC connector I added remains on the back panel. Plus the circuit I used is hand-drawn on the schematic, as seen in the pics above. Personal checks are accepted but will be held until they clear. And finally, due to the age and not being able to check out every last detail, this item sold (this posting is the responsibility of the poster) |
