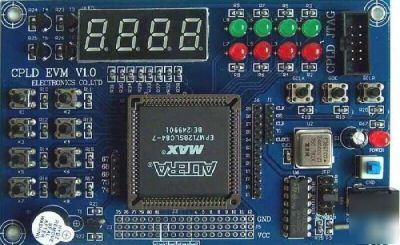

EPM7128 CPLD development board ALTERA ISP interface "ISP" techniques, namely the in-system programmable technology, enables users to be user code has been compiled directly into the target board CPLD chip, without the need to remove from the board CPLD chip, and whether the devices are blank or programmed before. After downloading directly debugging, debugging top end products, which eliminates debugging removed because of frequent insertion of the chip and the chip board for the inconvenience. The patch device for its convenience, it goes without saying that. To adapt to this trend, we developed a CPLD experimental development system for beginners to provide a low-cost learning environment. EPM7128 CPLD experimental development board adopted Altera's EPM7128SLC84-15 as the target CPLD. EPM7128S is Altera's MAX system based on the second generation of high-performance CPLD. Experimental plate used by the EPM7128S feet PLCC84 package, an integrated 128-unit, eight logic array and 2500 gate. EPM7128SLC84-15 (PLCC84 chip embedded in the socket, can be used for pulling out Kai), compatible EPM7064SLC84, EPM7096SLC84, EPM7160SLC84. EPM7128 CPLD development of a board of four digital LED, light emitting diodes, buttons, variable clock pulse signal source, speakers, and other basic input-output module. Can change the frequency signal generator (kHZ provide the highest frequency 32.768, the lowest frequency of a HZ, and the software can be used in the D flip-flop frequency can produce thousands of frequency) and pulse frequency of 12 M circuit. EPM7128 CPLD experimental development board can be a basic digital logic circuits, digital measurement and control automatically perform experimental music. EPM7128 CPLD development board all experimental chip, including a EPM7128S chips * Parallel port download cable (this posting is the responsibility of the poster) |
