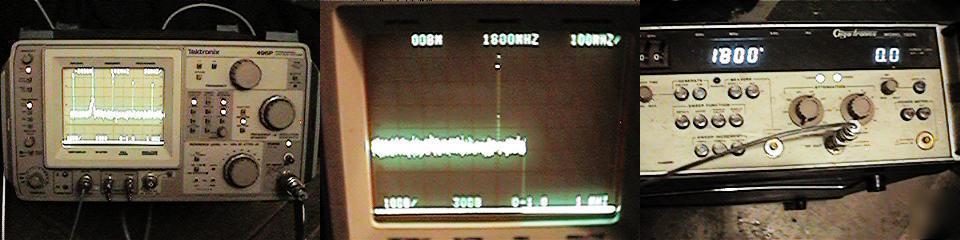

The Tektronix 496P is a rugged portable, digital storage, and programmable Spectrum Analyzer the unit has a frequency range from 1 kHz to 1.8 GHz. The 496P high stability and 80 dB dynamic range meet your demands for proof-of-performance measurements with 30hz - 1MHz freq/div selections. Simple 1, 2, 3 knob adjustment sets center frequency, frequency. span and reference level. The unit provides full IEEE-488 (GPIB) programmability, read data from the CRT display, and send waveforms for internal digital source memory to other GPIB devices. This unit looks very well maintained very clean inside and outside. This Tek analyzer of this well proven brand has a variety of uses regarding RF transmission or radio frequency communication from test, troubleshooting and repair to research, to analyzing TV or satellite signals. The digital storage will eliminate your time-consuming display adjustments. Save A, B Minus Save A, Max Hold and Average modes makes it easy to save time while discovering true spectral analysis. Constant tuning rate lets you position the signal quickly and accurately at any frequency span. * Amplitude calibrated in dBm or dBmV * Variable resolution bandwidth from 1MHz to 30Hz. 50 ohm/75 ohm selectable inputs * Amplitude Comparison in 0.25 dB steps * Calibrated amplitude in dBm or dBmV * Automatic phase lock stabilization reduces incidental FM to 10Hz p-p * Phase noise sidebands are at least -75 dBc at 30 times the resolution bandwidth offset * Fully programmable via the IEEE-488 interface, excellent choice for ATE systems The unit is by itself there is no front cover and no diplexer or mixers are included and no manuals are included. The unit is shown in the picture with the display of the onboard calibrator signal connected to the signal input as well . (this posting is the responsibility of the poster) |
