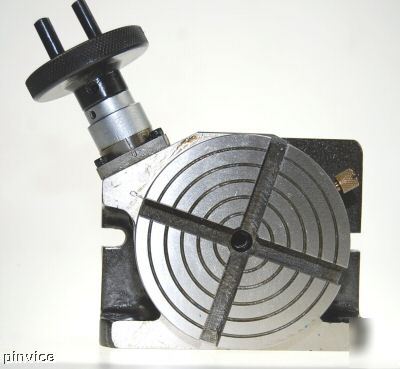

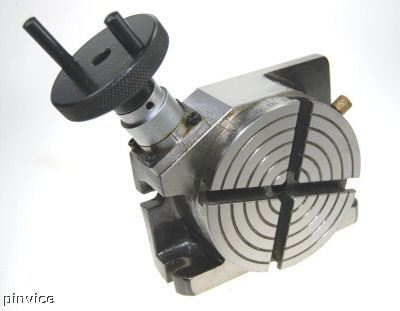

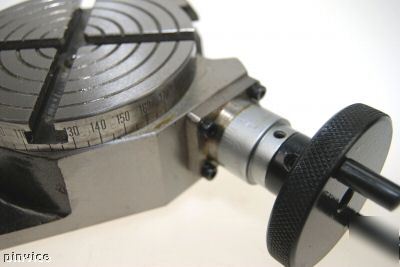

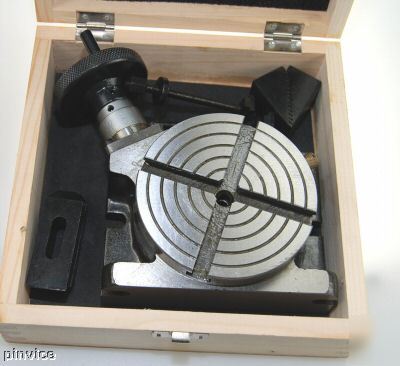

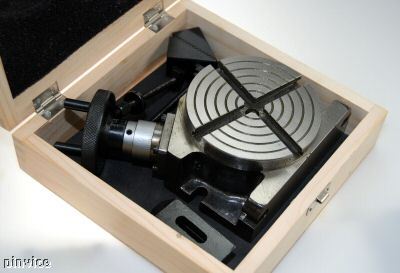

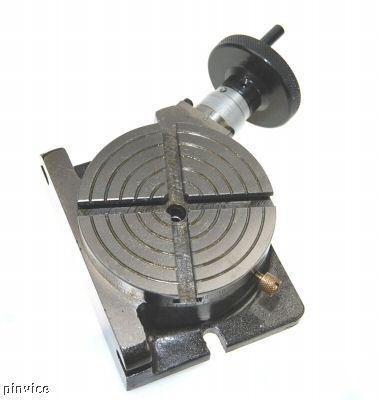

SOBA 100MM HORIZONTAL / VERTICAL ROTARY TABLE THIS IS A GENUINE BRAND NEW SOBA ROTARY TABLE. THE OVERALL HEIGHT IS UNDER 2" - A USEFUL FEATURE IF IT IS TO BE USED WITH SMALLER MILLING ATTACHMENTS AND LATHES SUCH AS THE MYFORD. THE TABLE CAN BE LOCKED IN ANY POSITION. CENTRE HEIGHT IN THE VERTICAL POSITION IS 1 1/16" BRINGING THE TABLE WITHIN THE RANGE OF MOST MODEL ENGINEERING LATHES & MILLS. THE HAND WHEEL SCALE WHICH CAN BE ZEROED IS MARKED IN DEGREES AN 10 MIN DIVISIONS. THE TABLE IS CALIBRATED IN 5 DEG INCREMENTS AROUND THE RIM. THE BRONZE WORM WHEEL AND STEEL WORM HAS A 36 TO 1 RATIO. GEAR MESHING IS ADJUSTABLE TO TAKE UP WEAR. A SET OF SUITABLE T NUTS STUDS AND CLAMPS (NORMALLY EXTRA AT £15.00) IS ALSO INCLUDED WITH THIS TABLE. THE PRICES IS INCLUSIVE OF VAT AND CARRIAGE UK MAINLAND CALL US ON (01582) 471900 OR EMAIL US AT SALES@CHRONOS.LTD.UK IF YOU HAVE ANY OTHER QUESTIONS Be sure to add me to your favourites list! (this posting is the responsibility of the poster) |
l_buckley@dfwind.com (Leroy Buckley) for more information. All emails will be forwarded to the poster's actual email address.
