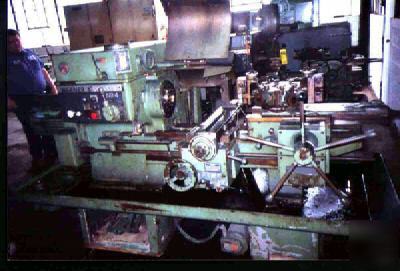

#4 WARNER & SWASEY "SQUARE-HEAD" RAM-TYPE TURRET LATHE New 1969, Serial No 2342551, Model 4, Series M4640, Turret Tooling - Coolant System Hole Thru Spindle...................... 2.44" Bar Capacity, Round.................... 2" Bar Capacity, Square................... 1.375" Bar Capacity, Hexagon.................. 1.75" Swing Over Bed Ways.................... 18.125" Swing Over Guides...................... 15.75" Swing Over Cross-Slide................. 9.5" Carriage Longitudinal Travel (Z-Axis).. 21.19" Cross-Slide Cross Travel (X-Axis)...... 9" Turret Longitudinal Travel (Z-Axis).... 12" Spindle-Face To Turret, Maximum........ 32.25" (48) Spindle Speeds, Range............. 30 to 1866 RPM Carriage Long Feeds (Z-Axis)........... .003 to .032 IPR Cross-Slide Cross Feeds (X-Axis)....... .0025 to .026 IPR Turret Longitudinal Feed (Z-Axis)...... .003 to .032 IPR Spindle Motor, Horsepower.............. 15/7.5 HP Electrical System...................... 440/3/60 Floor Space Required, L x D............ 9'8" x 5'9" Weight, Approximately.................. 6115 LBS PRICE: F.O.B. CINCINNATI, OH.......... $1,750.00 All machines/equipment subject to prior sale. (this posting is the responsibility of the poster) |
raymond_gutierrez@dfwind.com (Raymond Gutierrez) for more information. All emails will be forwarded to the poster's actual email address.
