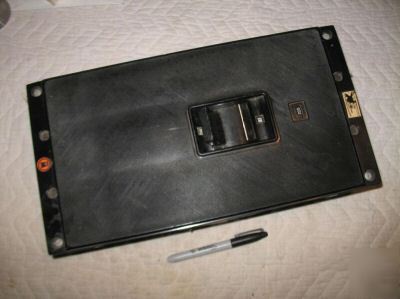

This is for a used Square D LAL36300 circuit breaker. 300 Amp rated to 600 VAC, 250 VDC. Magnetically adjustible trip 1500A - 3000A. Surface mount type breaker. Good condition. Here is some information from the Square D website: For Mining Applications Class 600 Molded Case Circuit Breakers for Mining Applications These circuit breakers with the properly selected trip range provide protection for trailing cables in compliance with the Federal Register for Mining Applications. The thermal-magnetic circuit breakers listed below have thermally-responsive trip elements in addition to adjustable instantaneous trip mechanisms. They allow for independent selection of thermal and magnetic trip characteristics. The circuit breakers are identified by a "T" in the suffix of the catalog number. See selection chart below. For MAG-GARD® instantaneous trip magnetic-only circuit breakers refer to Square D Digest. Please see links for more info: http://ecatalog.squared.com/catalog/173S/html/sections/03/SD173%2003-12.html# http://circuit-breakers-online.com/Square%20D/LAL36300.htm (this posting is the responsibility of the poster) |
jrandall@dfwind.com (Josephine Randall) for more information. All emails will be forwarded to the poster's actual email address.
