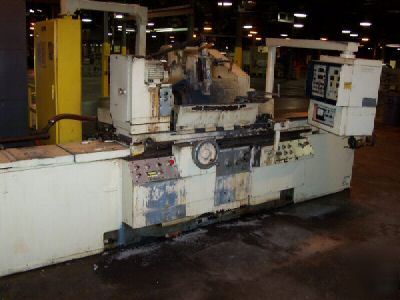

10" x 48" CINCINNATI PLAIN EC-II CYLINDRICAL GRINDER New 1974, Serial No. 35362E74-0003, Model 360-10 DA Electronic Control Model D w/Acrasize II Swing Over Table, Maximum................ 10.93" Grinding Diameter, w/New Wheel........... 10" Nominal Work Length...................... 48" Actual Work Length, Maximum.............. 60" Grinding Wheel, Maximum Diameter......... 24" Grinding Wheel, Minimum Diameter......... 15" Grinding Wheel Speed..................... 1040 RPM Workhead Spindle Speeds.................. 50 to 500 RPM Longitudinal Table Feeds, Infinite....... 3 to 250 IPM Wheelhead In-Feeds, Range................ 0 to .999 IPM Table Swivel Clockwise................... 2 Degrees Table Swivel Counter-Clockwise........... 8 Degrees Grinding Wheelhead Spindle Motor......... 15 HP Overall Dimensions, L x D................ 173" x 122" Overall Height........................... 62" Weight, Approximately.................... 19,500 LBS. PRICE: F.O.B. OUR WAREHOUSE............. $6,950.00 All machines/equipment subject to prior sale. (this posting is the responsibility of the poster) |
l.gordon@dfwind.com (Lewis Gordon) for more information. All emails will be forwarded to the poster's actual email address.
