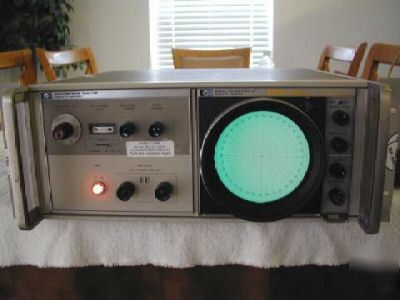

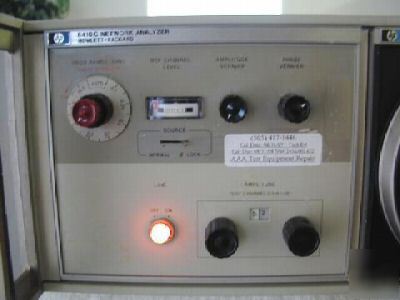

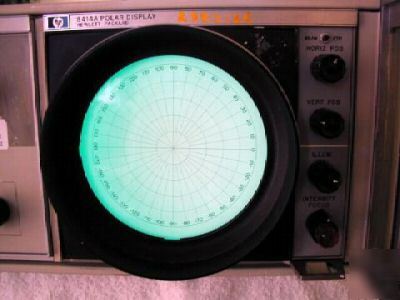

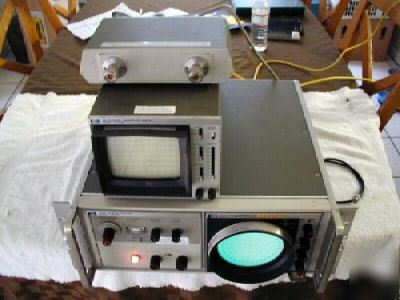

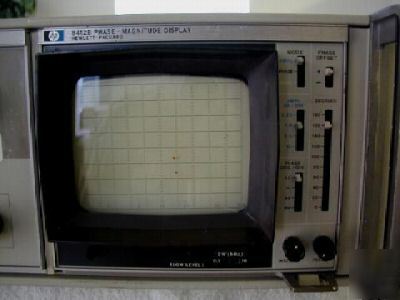

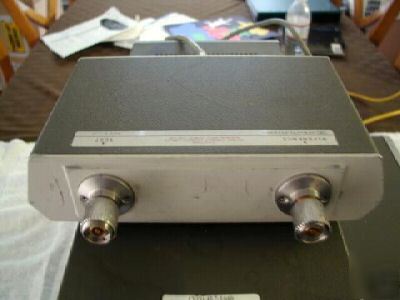

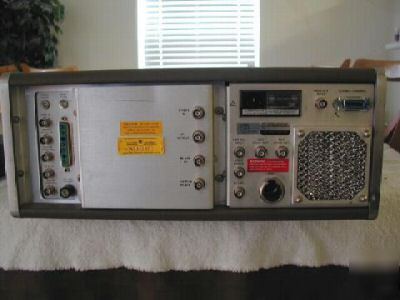

The HP Agilent 8410C, Network Analyzer Mainframe, used 110 MHz to 18 GHz and is the mainframe for display plug-in units. Includes tuning circuits, IF amplifiers and precision IF attenuator. The Frequency range is from 0.11 to 18 GHz and 12.4 to 40 GHz in waveguide (not included). The Agilent HP 8410C, Network Analyzer Mainframe, allows injection of an external local oscillator used in automatic applications to lock the 8410C receiver to an external source such as an HP 3335A Synthesizer/Level Generator. The 8412B Phase Magnitude Display plug-in is a CRT display for 8410B, 8410C, or 8407A Network Analyzers. Relative amplitude in dB and/or relative phase in degrees between reference and test channel inputs versus frequency. 80 dB and ±180º range. The HP Agilent 8414A is a used Network Analyzer Polar Display Unit that is used in HP 8410A/B/C or HP 8407A Network Analyzers. The Agilent HP 8414A coordinates on a 5 inch CR This unit displays amplitude and phase data in polar. The HP Agilent 8411A with option 018 is a used Frequency Converter with a 0.11 to 18 GHz range. The Frequency range of 0.11 to 18GHz and it has a Input impedance of 50 ohms nominal. The HP Agilent 8411A, Used Frequency Converter, converts RF signals to IF signals for processing in the 8410C Network Analyzer Mainframe. THIS IS THE COMPLETE 8410 SERIES NETWORK ANALYZER! Here is the data sheet for all the parts: http:// /pdf/agilent_hp_11650a.pdf Reasonable offers are always well come. REASONABLE ONES! My phone # is (***)-235-5613. This is my website for more equipment you may need: http://aaaequipmentresources.com/index.html (this posting is the responsibility of the poster) |
winifred_barlow@dfwind.com (Winifred Barlow) for more information. All emails will be forwarded to the poster's actual email address.
