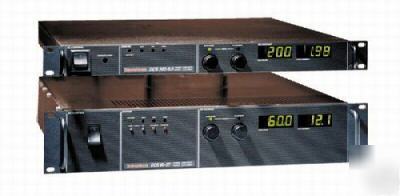

EscrowUnlt © AP6.0DCS40-30EM9C Sorenson Power Supply 40V 30A, DEMO UNIT with 5 YEAR WARRANTY!!!! Perfect Condition! Comes with IEEE-488.2 and RS 232 Interfaces From 0-8 VDC to 0-600 VDC; current levels from 1.7A to 350A Easy master/slave paralleling with active current sharing * Selectable remote programming for voltage, current and OVP * 16 bit programming through LXI -compliant Ethernet LAN / RS-232C (M130) * 12-bit programming through IEEE-488.2 / RS-232C (Option M9C)Isolated analog programming (Option M51) * Multichannel slave interface (Option M85 or M131) * IVI-com driver for M130 option * Labwindows CVI driver for M9C option * Labview driver for M9C option DC Programmable Switching Supplies Max. Voltage Differential from Output to Safety Ground Remote Start/Stop and Interlock TTL compatible input or 12-250 VAC (12-130 VDC) or a contact closure Internal fan, over temperature shutdown if internal heat sink exceeds set temperature The maximum allowed sense line drop is 4V per line (2V on the DCS 8/10V 1 kW/1.2 kW models and 1V/line for all 3 kW models). Line drop subtracts from the maximum available output voltage at full rated power. Enabled via external jumper on rear panel connector J3 Crowbar type adjustable from 5-110% of rated output using front panel control (local or remote program selectable via J3 jumper) Remote Analog Programming Linearity Certified to UL/CSA 61010 and IEC/EN 61010-1 CE Compliant (LVD and EMC directive) single phase, 8A typical, 47- 63 Hz single phase, 15A typical, 47-63 Hz, internal jumper selectable single phase, 9A typical, 47-63 Hz single phase, 18A typical, 47-63 Hz, internal jumper selectable For input voltage variation over the AC input voltage range, with constant rated load. For 0-100% load variation, with constant Typically recovers in 500 ìs (1 & 1.2 kW) or 1ms (3k W) to 1% of steady-state output voltage (within 1% of Vmax) for 70-100% or 100-70% load change. ±0.05% of maximum voltage or current over 8 hours after 30 minute warm-up time at fixed line, load and temperature See table below Temperature Coefficient: 0.02%/°C of maximum output voltage; 0.03%/°C of maximum output current. Change in output per °C change in ambient temperature, with constant line and load 19†(482 mm) W, Depth 17.52†(445 mm) 1 kW and 1.2 kW: 1U or 1.72†(43 mm) 1 kW and 1.2 kW: 19 lbs. ( 8.6 kg) 1 kW and 1.2 kW: 24 lbs. (10.9 kg) Programming & Read-back Specifications POS Output (8-100V Models Only) POS Sense (8-100V Models Only) The DCS Family of 1 kW, 1.2 kW and 3 kW programmable power supplies utilizes unique packaging techniques to achieve continuous full output power (1 kW, 1.2 kW or 3 kW) in any volt/amp combination within the rated output voltage and current limits in a low profile chassis., Demonstrated large installed base over a long period of time, the DCS family provides a highly reliable power platform. This family has an easy-to-use front panel with 10-turn potentiometers to adjust voltage and current settings that are displayed simultaneously. LEDs indicate overtemperature, remote programming, shutdown and over voltage protection, status and constant-voltage/current mode operation. The DCS 3 kW Models have push button control of the output standby mode, OVP reset, remote/local programming and preview status of voltage, current and OVP setpoints. (this posting is the responsibility of the poster) |
