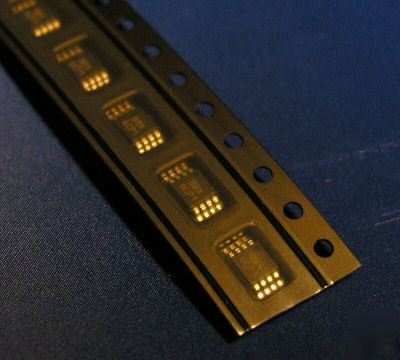

by Burr Brown/Texas Instruments _ > 1MHz TRANSIMPEDANCE BANDWIDTH _ EXCELLENT LONG-TERM VOS STABILITY _ DYNAMIC RANGE: 4 to 5 Decades The OPA380 family of transimpedance amplifiers provides high-speed (90MHz Gain Bandwidth [GBW]) operation, with extremely high precision, excellent long-term stability, and very low 1/f noise. It is ideally suited for high-speed photodiode applications. The OPA380 features an offset voltage of 25 ?V, offset drift of 0.1?V/°C, and bias current of 50pA. The OPA380 far exceeds the offset, drift, and noise performance that conventional JFET op amps provide. As a result of the high precision and low-noise characteristics of the OPA380, a dynamic range of 4 to 5 decades can be achieved. For example, this capability allows the measurement of signal currents on the order of 1nA, and up to 100 ?A in a single I/V conversion stage. In contrast to logarithmic amplifiers, the OPA380 provides very wide bandwidth throughout the full dynamic range. By using an external pull-down resistor to –5V, the output voltage range can be extended to include 0V. New stock in anti-static packaging US: $3.75 Canada: $4.50 International: $5.50 Lowest cost option. 2-nd item: S&H 75% less than first (or 25% of first) items 3-5: S&H 80% less than first (or 20% of first) items 6-10: S&H 90% less than first (or 10% of first) Be sure to add me to your favorites list! stock photo may show different part number (this posting is the responsibility of the poster) |
deana.barry@dfwind.com (Deana Barry) for more information. All emails will be forwarded to the poster's actual email address.
