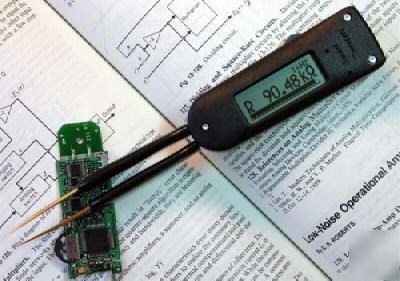

Professional High-Precision R-L-C Meter SMD Pre-Calibrated Components Identifier in a Set of Tweezers Intel, Research In Motion, Boeing, Los Alamos Nuclear Labs, Lockheed Martin, NASA and many other global R&D-intensive agencies and companies use Smart Tweezers™ Brand New, Factory-Fresh, Pre-Calibrated Now with Diode Polarity/Integrity Testing Function, Improved Menu System, Replaceable Tips and Pocket/Lanyard Clip Holder Smart Tweezers is an R-L-C meter in a set of tweezers. Smart Tweezers features a unique patented mechanical and electronic design that incorporates a built-in direct precision Surface Mounted Devices probe designed for component evaluation on the production line, component impedance testing and sortingof SMD components. Smart Tweezers dramatically cuts the time necessary to troubleshoot and debug a complex PCB making process of locating of a faulty component a breeze. The integrated SMD probe and graphic display, combined with automatic recognition of measurement modes (R, C, and L) and the range of measurement, allow the operator to focus on the component under test. As a result, testing, sorting and evaluation of components become more efficient and cost effective. Inductance, Capacitance, Resistance The primary display shows the present reading. The secondary display (on top) shows the present reading of additional parameters or measurement conditions when the primary display shows some other feature (L, C). When multiple features present, the secondary display shows one of the values. The Bar Graph provides an analog indication of the measured input. The Smart Tweezers is able to measure voltage. In the AUTO MODE, it measures DC voltage from 100µV to 800mV. In the TRACE MODE, it shows an oscilloscope-like picture of AC voltage. The Smart Tweezers is designed to measure continuity. The beeper sounds for resistance readings below the threshold, or to indicate a momentary open circuit. Tweezers tips are made of gold-plated non-magnetic stainless steel. Ergonomic Design and Convenient Controls Smart Tweezers features a JOG DIAL button to choose modifiers for a selected function or change the setting. Rotate the JOG DIAL button to choose from a list of functions, then press to activate this function and see it appear on the display. 1.5V LR44 Alkaline or Air zinc 80 Hours typical with alkaline, 240 hours with air zinc battery Electromagnetic Compatibility (EMC): Susceptibility and Emission: FCC 15 part B 14.0 x 2.5 x 3.0 cm (3.94 x 0.9 x 1.5 in) 0 to 800 mV (Up to 8V with optional slide switch manual setting) Detailed Accuracy Specifications Accuracy is specified at 18°C to 28°C (64°F to 82°F), with relative humidity to 90%. Fully automatic measurement of Inductance, Capacitance and Resistance Auto range: Meter automatically selects best range Continuity / Open test: Beeper sounds for resistance readings below threshold, or to indicate a momentary open circuit Trace Graph: Oscilloscope-like display for AC voltage measurement. Now for the bonus you can choose ONE bonus for each item you purchase from me: LED Illuminated Clip-on Magnifier (These clip on your actual Glasses). LED Illuminated Complete Magnifier Canada (Except rural and remote areas Please specify if tracking or faster delivery is required - Additional charges may apply. Canadian Residents must add appropriate Federal and, for Ontario, Provincial Tax. Please Calculate tax using following formula The warranty period starts the minute the listing ends. All sales are final 30 days after the listing's end S&H charges are not refundable for warranty and non-defective returns. (this posting is the responsibility of the poster) |
