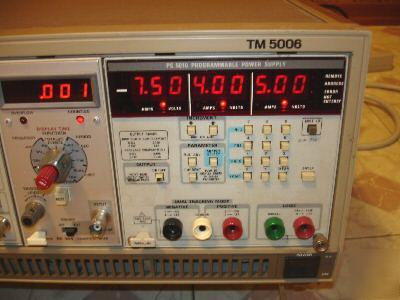

TEKTRONIX PS 5010 PROGRAMMABLE With it's English like GPIB commands, performance and combination of features, the PS 5010 Triple Power Supply reduces both software and hardware system development. Configuration: Dual floating with shared common terminal. Positive and Negative Floating Supplies. Isolation - 150 V peak from panel 42 V peak from near interface. 0.015uF typical shunt capacitance to ground. Voltage Range: 0 to 32.0 V to -32.0 V. Voltage Accuracy: +-(0.5% - 20mV) overall: +-(0.01% +2mV) line regulation; +-10 mV for 1A load current change (1 mV when using rear interface output with remote sensing). Voltage PARD (Ripple and Noise): 10 mV p-p; 20Hz to 20 Mhz. Voltage Resolution: 10 mV +-10mV (typ +-2mV) to 10.0 V, 100mV +- 40 mV(typ +-10mV) > 10.0V. Load Transient Recovery: 500 us to recover within 20 mV of nominal value for 1A change. Voltage Change Response Time: 1 ms for up or down change. 20 msfor down change with no load. Current Limit Range: 50 mA to 0.75 A (1.60 A at 15V and below) in high power compartment. 50 mA to 400 mA (0.750 A at 15V and below). Current Limit Accuracy: +-(5% +20mA) overall; +- 1 mA line regulation; +- 10mA load regulation. Output impedance is typically 5 kiloohms shunted by 20 uF. Current Mode PARD (Ripple and Noise): 10 mA p-p, 20 Hz to 20 Mhz. Current Change Response Time: 20 ms up or down. Current Resoltion: 50 mA +-15mA. Item Weight Packaged: 16 lbs Nice shape, coming from a working environment! Money Order/Cashier Checks * Personal Checks will have to wait to clear first (this posting is the responsibility of the poster) |
