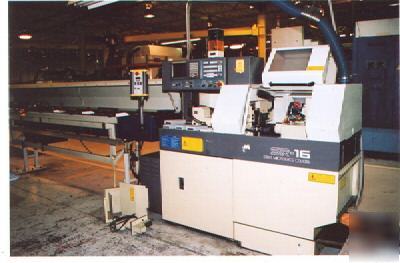

STAR SR-16 SWISS TYPE CNC LATHE, Model SR-16, S/N 060887, New 1996 Maximum Turning Diameter 16 mm (5/8") Maximum Head Stock Stroke 205 mm (8") Maximum Drilling Capacity Stationary Tool: 8 mm (5/16") Maximum Drilling Capacity Power Driven Attachment: 5 mm (3/16") Maximum Tapping Capacity Stationary Tool: M8 x Pl.25 Maximum Tapping Capacity Power Driven Attachment: M5 x PO.8 Maximum Milling Capacity 0 mm (3/8") Maximum Die Cutting Capacity M8 x Pl.25 Maximum Slotting Capacity 1.5 mm Width x 4 mm Depth Rapid Feed Rate - X 12,000 mm/min. Rapid Feed Rate - Y 16,000 mm/min. Rapid Feed Rate - Z 18,000 mm/min. Rapid Feed Rate - XB 18,000 mm/min. Rapid Feed Rate - ZB 18,000 mm/min. Maximum Turning Feed Rate - X 6,000 mm/min. Maximum Turning Feed Rate - Y 6,000 mm/min. Maximum Turning Feed Rate - Z 6,000 mm/min. Maximum Turning Feed Rate - XB 6,000 mm/min. Maximum Turning Feed Rate - ZB 6,000 mm/min. Minimum Input Increment - X .001mm/.0001" (Diameter Value) Minimum Input Increment - Y .001mm/.0001" (Diameter Value) Minimum Input Increment - Z .001mm/.0001" Minimum Input Increment - XB .001mm/.0001" (Diameter Value) Minimum Input Increment - ZB .001mm/.0001" Operation Mode Right Handed Machine Speed Control S Code + Direct 5 Digit Command Main Spindle Rotational Control Inverter Control Main Spindle Minimum Indexing Angle 15 Degrees (24 Divisions) Main Spindle Bore 20 mm (49/64") Maximum Chucking Diameter 16 mm (5/8") Maximum Part Length for Front Ejection 80 mm (3-1/8") Maximum Parts Projection Length 30 mm (1-5/32") Distance from Collet End Spindle Speeds 400 - 6,000 RPM Speed Control S Code + Direct 4 Digit Command Rotational Control Inverter Control Spindle Minimum Indexing Angle 15 Degrees (24 Divisions) Sub Spindle Motor .75 KW / 1.2 KW (30 Min.) Type: Gang Tool Post - 2 Axis Control Number of Power Driven Tools 3 Tool Shank Size 12 x 95-120 / 12.7 x 95 - 120 Speed Control S Code + Direct 4 Digit Command Rotational Control Inverter Control Use Cross Drilling/Milling Spindle Type R16 (Schaublin Type F20, Art No. 87) (Star Standard Part Equivalent to C16) (Weukomm Type B Art No. 39.001) (Star Standard Part Equivalent to C16) HYDRAULIC UNIT SPECIFICATIONS: Installation Method Installed Separately Outside Machine Hydraulic Tank Capacity 20 L (5.2 Gallons) Suitable Hydraulic Oil Viscosity Grade: ISO V632 Recommended Oil Shell Tellus Oil 32 Installation Method Installed Separately Outside Machine Coolant Tank Capacity 100 L (26.4 Gallons) Safety Device Coolant Oil Level Detector Cutting Oil Water Insoluble Cutting Oil LUBRICATING UNIT SPECIFICATIONS: Lubrication Part Rectilinear Guide Bearing Portion Oil Ejection Amount 2.5 cc/30 min. Tank Capacity .8 L (.2 Gallons) Safety Device Lubricating Oil Level Detector Suitable Lubricating Oil Viscosity Grade ISO VG68 Recommended Oil Mobil Vactra Oil No. 2SLC 3 SPINDLE END WORKING ATTACHMENT: Maximum Drilling Capacity 8 mm (5/16") Maximum Tapping Capacity M8 x Pl.25 Maximum Chucking Diameter ER16 10 mm (.39") Maximum Die Cutting Capacity M8 x Pl.25 Maximum Die Diameter 2.5 mm (.98") 3 SPINDLE UNIT FOR BACK WORKING: Maximum Drilling Capacity 7 mm (1/4") Maximum Chucking Diameter 10 mm (.39") Maximum Tapping Capacity M6 x Pl.0 Maximum Chucking Diameter ER11 7 mm Sub-Spindle 15 Degree Indexing Unit with Synchronous Phase Control of Air Blow in Sub-Spindle to Clear Chips NSK Air Spindle Milling Heads with 30,000 RPM Air Motors LNS Mini-Sprint S2 Barfeed, Serial #46826-96 Broken Belt Detector for Sub-Spindle Cabinet with Assorted Tooling & Collets 3-Spindle Cross Drilling/Milling Unit Sub-Spindle Digital Tachometer Main Spindle Inner Tube: 11.7 mm 2.2 KW (Continuous) Main Spindle Motor Machine Wired for 3 Phase, 60 Cycle, 220 Volt Main Machine: 84" L-R x 45" F-B x 84" H Barfeed: 184" L-R x 44" F-B x 50" H Tooling Cabinet: 30" L-R x 30" F-B x 34" H Coolant System: 44" L-R x 30" F-B x 17" H (this posting is the responsibility of the poster) |
