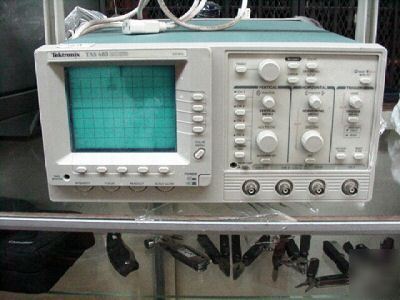

* 200 MHz @ Four Channels TAS 485 * Trigger/Ground Reference Indicator * Combination Menu/Direct Access Controls * Manufacturing Production Test * Bench Calibration and Repair For additional information or to order, contact your local Authorized Tektronix Distributor. Rise Time: =1.8 ns (TAS 485). Main Sweep Range: 0.5 s/div to 20 ns Delayed Sweep Range: 5 ms/div to 20 ns. Vertical Sensitivity: 2 mV/div to 5 V/div. Sweep Speed (X10 mag.), Main: 1 ns/div (TAS 485). Sweep Speed (X10 mag.), Delayed: 1 ns/div (TAS 485). Trigger Modes: AUTO LEVEL, AUTO, NORMAL, TV LINE, TV FIELD (odd, even, or both), SGL SEQ. Trigger Delay: RUNS AFTER DELAY, TRIGGERS AFTER DELAY, TV LINE (from MAIN source). Trigger Coupling (both Main and Delayed): AC, DC, Noise Reject, HF Reject, LF Reject. (this posting is the responsibility of the poster) |
