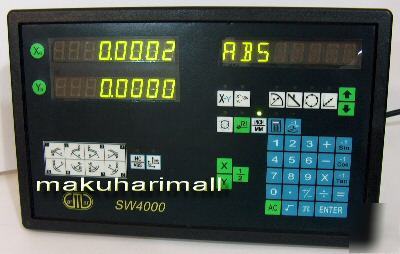

Model SW4000-2 Digital Readout with Two Pieces of Linear Glass Scales. You need a DRO for your 50" lathe? a Linear scale travel length 51" (1300 mm) for the carriage; and a linear scale for the cross slide. Can this be use for your machine? Not sure? Please email to me and I will be happy to answer all your questions. All-in-one multi-functions DRO for lathe, milling and grinding machines. This DRO is packed with functions for lathe, mill and grind. So you can use it for other machines as and when you need to. It also have a RS232 Port for you to connect to a PC. ½ to locate work piece center. Set direction of linear scale. RI detection: set and recall datum for machining. Resolution selection: 0.001 , 0.005 , 0.010 mm Milling Function: Bolt Circle machining, R-angle machining, Divide holes on an oblique line, Machining on an oblique line. Lathe Function: Radius/Diameter, X+Y (2-axis DRO). Example: If 2 scales are installed in one axis, the position of the work piece should be the sum of these two values: (X+Y) in this direction. In the lathe function #0 (normal mode): X window displays the co-ordinate of X. In lathe function #1: X window displays the "Value of X-axis position + Value of Y-axis position". Grinding Function: Filtering ( make it easier to read the display). Dimension: 295mm x 185mm x 45mm. Linear scale signals : TTL square wave. High accuracy optical glass scale. Accuracy: ±0.005 mm (at 20 degrees). Output Signal: TTL Square wave. Stainless steel Armored cable, 16.4 ft (5m). Overall length of Linear scale (cross slide)= ML+ 5". Overall length of Linear scale (carriage)= ML+ 6". 1 set of SW4000-2 digital readout with 2 pieces of linear scales. Display mounting arm and plastic dust cover. Aluminum cover for all linear scale. * Delivery takes about 11 to 17 days depending on your location/country. * Tracking number will be email to you. * Return accepted within 30 days for refund/exchange. Easy Free Borders from TagBot Borders (this posting is the responsibility of the poster) |
