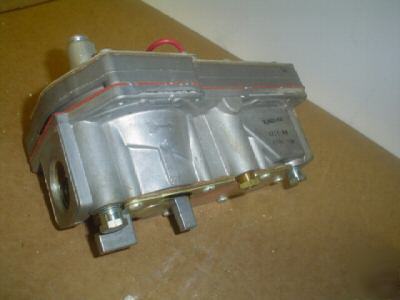

Combination gas control for use in 24 Vac, gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh. • Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment. • Use with S86F,H; S860D; S8600F,H; S8610 and S90A,B Control Modules. • Provide two automatic valves. Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends. • Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted. • Meet codes requiring dual safety shutoff. • Standard and slow opening natural gas models include natural to LP gas conversion kit; LP to natural gas conversion kit also available. • All adjustments, wiring connections and pilot outlet are accessible from top of control. • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure. • Compatible with ECO connector. • ON-OFF lighting sequence. Description 24 Vac Dual Intermittent Pilot Gas Valve with 1/2 in. x 3/4 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting Ignition Type Intermittent Pilot Inlet/Outlet Size (in.) 1/2 in. x 3/4 in. Body Pattern Straight-through Opening Characteristics (standard, step) Standard Capacity @ 1 in. p.d. 270,000 BTU/hr; 30,000 BTU/hr minimum Pressure Ratings (psi) 1/2 psi Pressure Ratings (kPa) 3.5 kPa Pressure Regulator Setting (psi) 3.5 in. wc Pressure Regulator Setting (kPa) 0.87 kPa Pilot Gas Outlet Compression fitting for 1/4 in. OD tubing Pressure Tapping 1/8 in. NPT with plug Electrical Connections 1/4 in. male quick-connects Temperature Range (F) -40 F to +175 F Temperature Range (C) -40 C to +79 C Mounting 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically. Dimensions (in.) 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep Dimensions (mm) 135 mm high x 104 mm wide x 69 mm deep Includes One 3/4 in. x 1/2 in. reducer bushing; 393691 Natural to LP gas conversion kit. Approvals, American Gas Association IAS AGA Design Certified: File No. L2025007. Approvals, Canadian Gas Association CGA Design Certified: File No. L2025007. Approvals, Underwriters Laboratories Inc UL Component Recognized: File No. MH5323. Replaces Gas Valve Part Numbers: VLV42A-602 VR8440A2076 VR8440M3648 UR8440A2076 VR8304M 3509 VR8304M3509 VR8440A 2068 VR8440A2068 VR8440M 1018 VR8440M1018 VR8440M 1034 VR8440M1034 VR8440M 3006 VR8440M3006 VR8440M 3022 VR8440M3022 VR8440M 3030 VR8440M3030 VR8440M 3048 VR8440M3048 VR8440M 3055 VR8440M3055 VR844A 1036 VR844A1036 VR844M 1022 VR844M1022 VR844M 1048 VR844M1048 VR844M 1071 VR844M1071 VR844M 1097 VR844M1097 VR844M 1105 VR844M1105 VR844M 1113 VR844M1113 VR844M 1121 VR844M1121 VR844M 1147 VR844M1147 VR844M 1154 VR844M1154 VR8304M 3103 VR8304M3103 VR8304M 3111 VR8304M3111 VR8304M 3129 VR8304M3129 VR8304M 3152 VR8304M3152 VR8304M 3160 VR8304M3160 VR8304M 3178 VR8304M3178 VR8304M 3186 VR8304M3186 VR8304M 3517 VR8304M3517 VR8304H4503 VR8304M4507 A15691-600R VLV49A-600R VR8345M4302 VR830MH3505 VR8440A3025 VR8440A6028 VR8440A6036 VR8304M3509 SP10963B CARVR8304M3509 Used in Rheem Ruud Equipment Models: We also carry: Liebert, Trane, Blazer, Carrier, York, Comfort-aire, G.E., Tecumseh, Emerson, Westinghouse, Copeland, Bristol, Magnetek, Century, Maneurop, Marathon, Alco, Parker, ect... Attention sellers: All surplus & new A/C inventory wanted. Please send over lists via e-mail. If you would like to be on our mailing list, send us a message. Please call 1(***)-545-8002 for more information. (this posting is the responsibility of the poster) |
