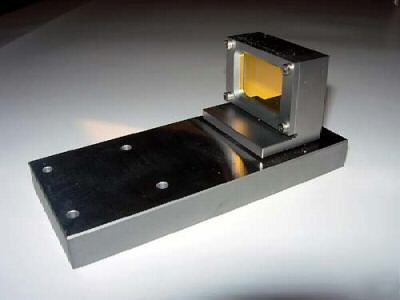

HP Agilent 10773A Flatness 100% Reflectance Mirror (Mint) The Agilent 10773A Flatness Mirror is a 100% reflectance mirror that turns the direction of an incoming laser beam 90 degrees. The mirror, used in 5528A laser measurement and 5529A calibration systems, measures flatness in applications such as surface plate calibration. It can be used in place of the 10707A Beam Bender (6 mm or less beam diameter) for applications that require the larger aperture of the 10773A. The Agilent 10773A is one component of a family of measurement optics that tailor interferometer systems for the physical layout and measurement requirements of each application. Configured with appropriate laser head and system electronics, the optics are part of a precise positioning or calibration system that improves product quality, increases yields, and facilitates manufacture of precision products. * Optics: Optical Grade Glass * Adhesives: Low Volatility (Vacuum Grade) * Large aperture allows use with 9 mm laser beam diameters * Mounts with swivel-attached baseplate for easier surface plate calibration * Also available in convenient flatness measurement kit * Available for use in a variety of Agilent systems, including the Agilent 5529A calibrator system (United States): Agilent listed from US$ 1,181. * 10 day DOA Guarantee from BoteQ.com (this posting is the responsibility of the poster) |
