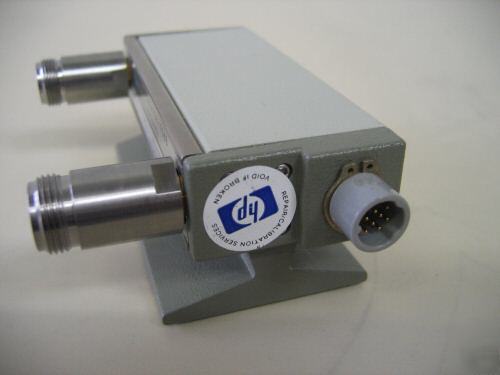

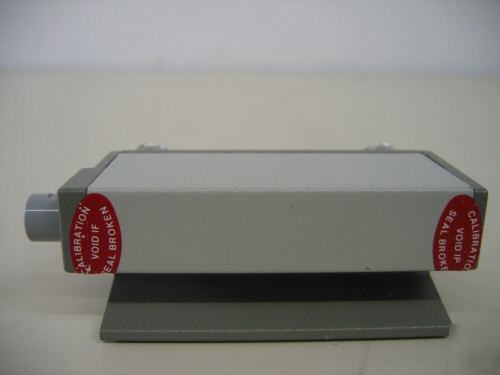

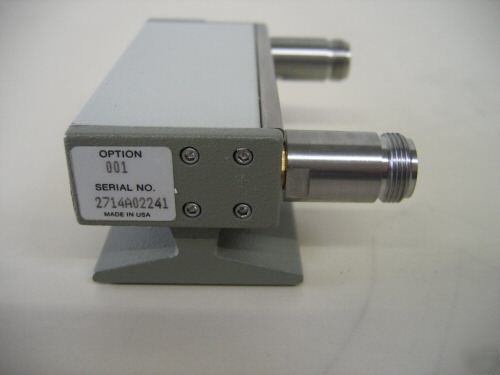

HP (Agilent) 8494G Attenuator w/ opt. 001 * Description: The HP 8494G is a programmable step attenuator that operates from dc to 4 GHz and offers exceptional repeatability and reliability. Attenuation is provided in 1 dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long-life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). A maximum switching time of 20 ms (including contact settling) speeds automatic testing. * Frequency range: dc to 4 GHz * Attenuation range: 0 to 11 dB, 1 dB steps * Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz * Repeatability life: 0.03 dB maximum, 5 million cycles per section * Maximum RF input power: 1 W (average), 100 W (peak) * Cosmetic Condition: Excellent * Working Condition: Presumed Good but Untested * Other Comments / Notes: Unit has the following option: * 001: N Female connectors * Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details). We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent. (this posting is the responsibility of the poster) |
