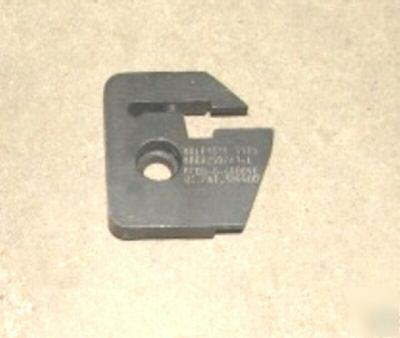

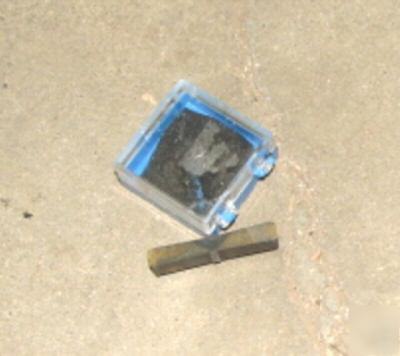

Item ...................... Indexable Tool Holder Insert tool, this tool holds v groove bottom style (dog bone) inserts and mounts on a master Valenite holder MODEL ............... ECON-O-GROOVE 11T1 VDBA250281-L Shank Size .......... 2.014" TALL x .514" overall width x 2" Overall length. It is equipped with one new dog bone insert however I am not 100% sure this insert is the correct one for this holder even though it does seem to fit in it. On the side that mounts against the holder which is the side that is down in the photo, there is a part that extends out past the holder to keep it squarely secured in the master holder, that part is .564" wide and .892" tall. There is also a .345" hole in it for the cap screw. So figure it is for a 5/16" screw. ECONOGROOVE Condition ................ Very nice, might be NEW old stock. It does have a new insert with it. If in Michigan add 6% sales tax. Thanks! (this posting is the responsibility of the poster) |
