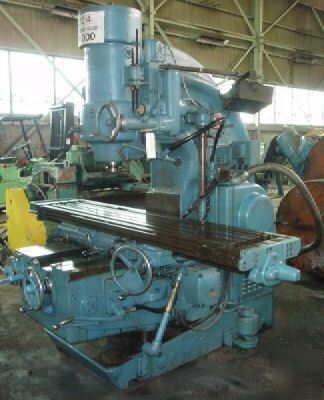

#550TF-20 KEARNEY & TRECKER "TWIN-SCREW" VERTICAL MILL New 1961/Rebuilt 1979, Serial No 8/8970, Power Down Feed - Motor Load Meter Knee Motor - Twin Elevating Screws for Table Mono-Lever & Automatic Cycle Table Control Centro-Matic Automatic Lube System Table Dimensions (Overall), W x L....... 19.5" x 96" Table Working Surface, W x L............ 19.5" x 96" Table Longitudinal Travel (X-Axis)...... 50" Saddle Cross Travel (Y-Axis)............ 18" Knee Vertical Travel (Z-Axis)........... 18" Spindle-Head Vertical Travel (Z-Axis)... 8" Spindle Taper........................... #50 NSTD (24) Spindle Speeds, Range.............. 15 to 1500 RPM (32) Longitudinal and Cross Feeds....... 3/8 to 90 IPM (32) Vertical Head Feeds, Range......... 3/16 to 45 IPM (32) Vertical Knee Feeds, Range......... 1/8 to 30 IPM Power Rapid Traverse, Long & Cross...... 150 IPM Power Rapid Traverse, Vertical.......... 50 IPM Power Rapid Traverse, Spindle Head...... 75 IPM Spindle Motor, Horsepower............... 50 HP Feed Motor, Horsepower.................. 5 HP Weight, Approximately................... 18500 LBS PRICE: F.O.B. OUR WAREHOUSE............ $12,500.00 All machines/equipment subject to prior sale. (this posting is the responsibility of the poster) |
