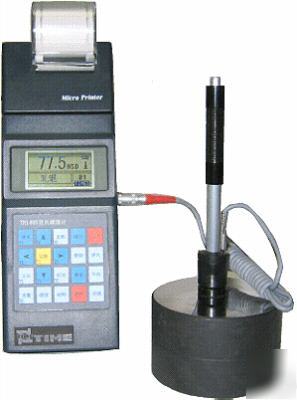

Automatic correction for impact direction Large, easy to read display with backlight User profiles for fast change of all settings Rugged sealed membrane keypad and touch screen Large memory with on-screen review of data Converts to all common hardness scales (HB, HRB, HRC, HV,HSD) and tensile strength MPa. Internal rechargeable Li-Ion batteries Conforms to the Standard ASTM A956-02 • Ideal for production level testing • Best suited for on-site testing of heavy, big or already installed parts • Handy for difficult to access or confined test locations • Automatic compensation for impact direction • Excellent for material selection and acceptance tests • Easy to use and accurate on curved test surfaces (R > 10 mm) • Metal production & processing • Testing services & laboratories 􀂗 UNIT DISPLAY: large LCD with adjustable contrast,backlight,touch screen 􀂗 UNIT MATERIAL: Shock resistant ABS plastic 􀂗 INTERNAL DATA STORAGE: ~ 800 measured value 􀂗 RESOLUTION: 1 HL; 1 HV; 1 HB; 0.1 HRC; 0.1 HRB; 1 HSD;1 MPa 􀂗 BATTERY TYPE: rechargeable Li-Ion 􀂗 OPERATING TEMPERATURE: 0 to +50°C (32 to 122°F) 􀂗 STORAGE TEMPERATURE: -10 to +60°C (14 to 140°F) 􀂗 DIMENSIONS: 180 x 90 x 30 mm (7.1 x 3.5 x 1.2 inches) Max. Hardness of the sample: 940HV Preparation of the surface roughness class ISO: N7 Preparation of the surface Maximum rough Depth Rt: 10μm Preparation of the surface centre line average CLA, AA: 2μm Min. weight of samples of compact shape: 5kg Min. weight of samples on solid support: 2kg Min. weight of samples coupled on plate: 0.1kg Min. thickness of sample coupled: 3mm Min. thickness of sample min. thickness of layers: 0.8mm Indentation of test tip with 300HV diameter: 0.51μm Indentation of test tip with 300HV depth: 24μm Indentation of test tip with 600HV diameter: 0.45μm Indentation of test tip with 600HV depth: 17μm Indentation of test tip with 800HV diameter: 0.35μm Indentation of test tip with 800HV depth: 10μm Whole set is portable.Easy to carry. Portable printer as optional accessary is available. Price is USD171/Unit. (this posting is the responsibility of the poster) |
