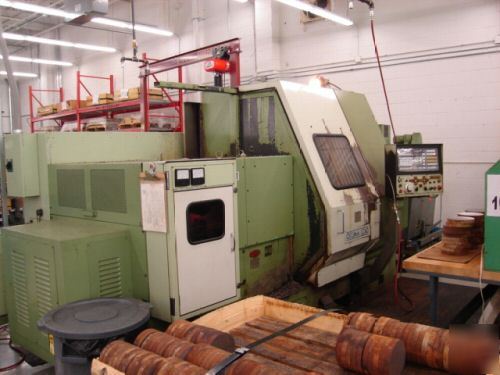

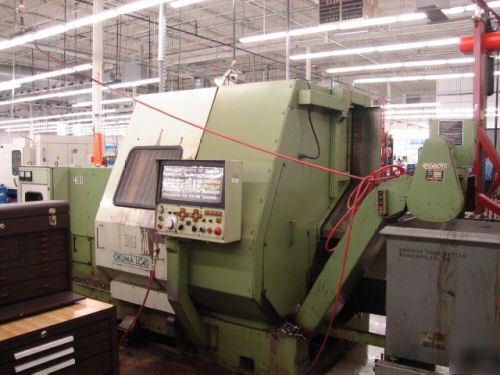

OKUMA LC-40 2ST/250 4-AXIS CNC TURNING MACHINE Motor Driven with 60 HP (45 KW) Spindle Drive Motor. 5 HP (3.7KW) Z-Axis Upper Turret Motor. 3 HP (2.2 KW) Lower Turret Motor. X-Axis 2 HP (1.5 KW) Upper Turret Motor. 1 HP (0.75 KW) Lower Turret Motor. MD Hydraulic Oil Pump Motor. MD Coolant System. EQUIPPED WITH: OSP-3000 CNC Controls. Chip Conveyor. Chuck. Misc. Tooling. Max. Turning Dia. 15.75" (430mm) Max. Turning Length 21.6" (550mm) Spindle Speeds (4 Inf. Var.) 10-2500 RPM Z-Axis Upper Turret 21.65" (550mm) Z-Axis Lower Turret 21.65" (550mm) X-Axis Upper Turret 8.93" + 2.87" 227mm + 73mm X-Axis Lower Turret 6.1" + 0.59" 155mm + 15mm Z-Axis Upper & Lower Turret 0.01-80.00mm/rev. X-Axis Lower & Lower Turret 0.01-80.00mm/rev. Z-Axis Upper & Lower Turret 5000mm/min. X-Axis Upper & Lower Turret 5000mm/min. Number Positions Upper Turret 12 Number Positions Lower Turret 8 Approximate Dimensions 93" x 158" (2380mm x 4020mm) Approximate Weight 9500 Kg. (21,000 Lbs.) (this posting is the responsibility of the poster) |
lwise@dfwind.com (Lucia Wise) for more information. All emails will be forwarded to the poster's actual email address.
