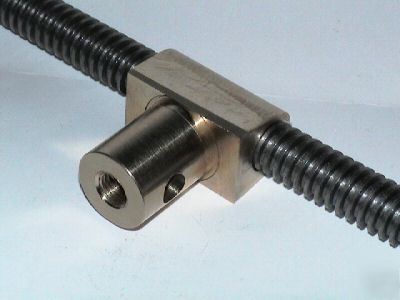

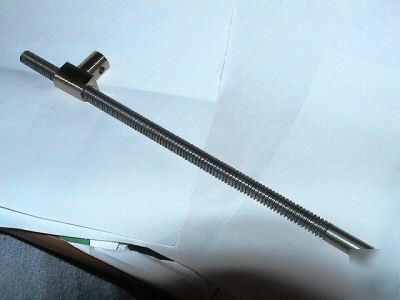

SOUTH BEND LATHE REPAIR KIT SHAFT AND NUT WITHOUT TAPER. BLANK CROSS FEED REPAIR SHAFT 7/16X10 LEFT HAND ACME THREAD AND FINISHED BRONZE CROSSFEED ACME NUT. AN INEXSPENSIVE REPAIR FOR YOUR MACHINE IF PARTS ARE NO LONGER AVAILABLE OR COST EFECTIVE. 11 INCHES OF ACME THREAD - 12 INCHES LONG. THE THREADED SHAFT WILL HAVE TO BE BRAZED OR PINED TO YOUR OLD CROSS FEED SHAFT. CUT YOUR OLD THREADS OFF DRILL A HOLE, SLIDE THE TWO PIECES TOGEATHER AND WELD OR PIN. TO FIND THE SIZE OF YOUR ACME THREAD JUST MEASURE THE OUTSIDE DIAMITER OF THE SHAFT AND THAT IS THE SIZE OF THE ACME THREAD. OTHER ACME SIZES AVAILABLE, 11/16 - 5/8 - 1/2 - 7/16 -3/8 RIGHT AND LEFT HAND THREAD PLEASE ASK. Height from seat of circular part of nut to centerline of acme thread = .375 Thread size of taped hole in top of nut = 5/16 - 24 (this posting is the responsibility of the poster) |
