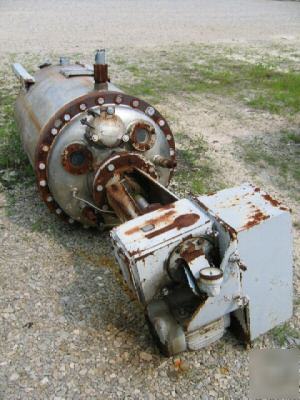

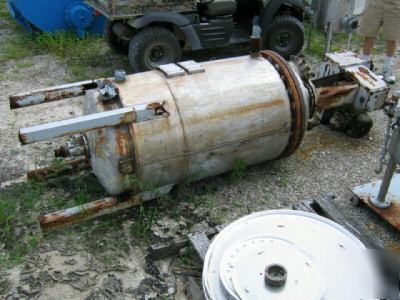

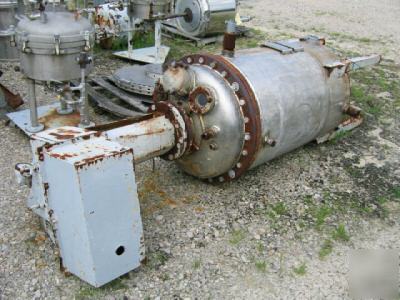

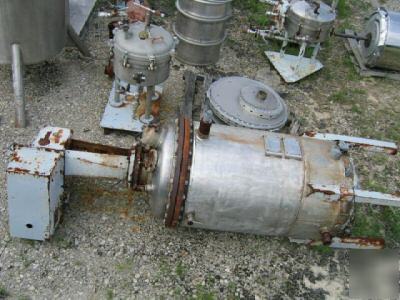

MANUFACTURER: NATIONAL TANK & MANUFACTURING CO. 150 GALLON STAINLESS STEEL JACKETED TANK, 28" DIA. X 48" STRAIGHT SIDE. S/N 31165B. SHELL IS RATED FOR 40 PSI @ 275°F. JACKET IS RATED FOR 30 PSI @ 275°F. TANK INFO: .187" SHELL THICKNESS, 1/8" HEAD THICKNESS, .187" THICK STAINLESS JACKET. JACKET HAS 2" FITTINGS. SHELL HAS 2" CENTER DRAIN WITH BALL VALVE. TOP OF TANK CONSISTS OF: TWO 3" SIGHT GLASSES. ONE 6" INSPECTION PORT. ONE 8" NOZZLE FOR MIXER. STAINLESS STEEL MIXER WITH MOTOR. TWO 1" INSTRUMENT FITTINGS. FLANGED & BOLTED REMOVABLE HEAD. 14" CLEARANCE BELOW BOTTOM HEAD. 1" NPT COUPLING. LOWER SIDE: 1" NPT, 1" FLANGED CONNECTION. MANUFACTURED IN 1973 BY NATIONAL TANK & MANUFACTURING CO. LOS ANGELES, CALIFORNIA. (this posting is the responsibility of the poster) |
Kaybullock@dfwind.com (Kay Bullock) for more information. All emails will be forwarded to the poster's actual email address.
