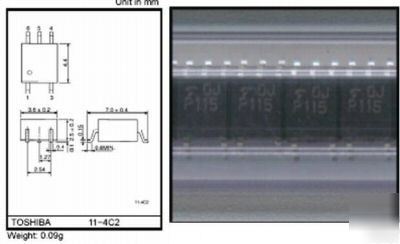

Please note: the following spec sheet is for the TLP115A my parts are NOT the A verision and I am not sure of the difference. TOSHIBA Photocoupler GaAAs Ired & Photo-IC * High Speed, Long Distance Isolated Line Receiver * Microprocessor System Interfaces * Digital Isolation For A / D, D / A Conversion The TOSHIBA mini flat coupler TLP115A is a small outline coupler, suitable for surface mount assembly. TLP115A consists of a high output power GaA .As light emitting diode, optically coupled to an integrated high gain, high speed shielded photo detector whose output is an open collector schottky clamped transistor. The shield, which shunts capacirively coupled common noise to ground, provides a guaranteed transient immunity specification of 1000V / µs. Input current thresholds: IF = 5mA (max.) Common mode transient immunity: ± 1000V / µs (min.) Guaranteed performance over temp. : 0~70°C Isolation voltage: 2500Vrms (min.) UL recognized: UL1577, file no. E67349 for other great component bargains on Microprocessors, Transistors, Capacitors, IC's, Transformers, Diodes, Crystals, and more! And we salute our friends in other countries around the world! (this posting is the responsibility of the poster) |
j.church@dfwind.com (Josie Church) for more information. All emails will be forwarded to the poster's actual email address.
