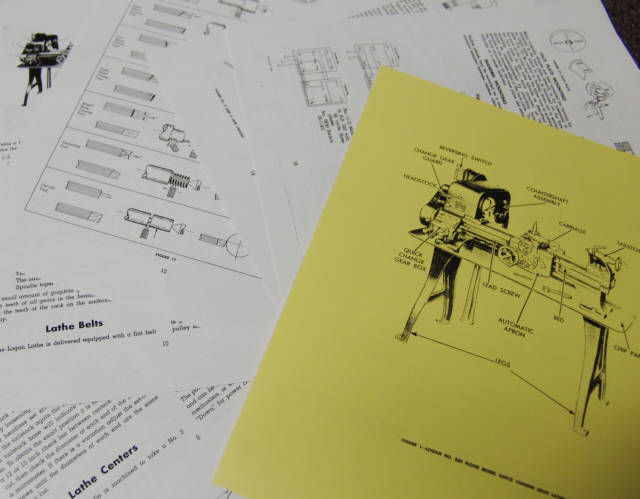

Metal lathe instruction manual basic set up Logan * Pre 1950 manual furnished with the Logan No. 815-816-820-821 metal lathes. 16 pages of, set up, maintenance and use of this lathe. Descriptions and photos of lathe components (back gears, power feed, carriage, etc) Quick Change gear/longitudinal chart for thread cutting. Cutting tools, lathe tool bit shapes set up. Motor and switch wiring diagrams for 110, 220 and 440-3 three phase. Four pages on operating and maintenance of the Universal chuck (3 jaw) and independent chuck (4 jaw). 20 total pages of copies of original Logan lathe information, two-sided printing on 28 lbs heavy weight paper with card stock cover page and punched for three ring binders,in English only. Great info if you have bought a used machine with out original set up information or getting started in metal turning and looking for some basic turning info for all metal lathes. Click Thumbnail to view larger image (this posting is the responsibility of the poster) |
