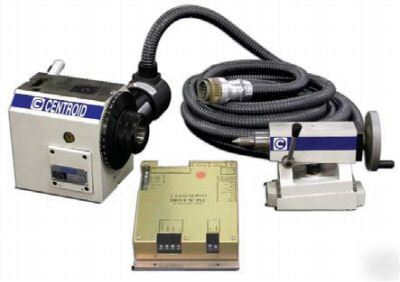

5C Rotary Indexer Package for your existing Centroid Mill control. High precision Rotary Indexer. Use 5C collets or you can install a chuck, face plate, or other threaded work piece. This complete installation kit arrives with everything you will need to add this rotary indexer to your existing Centroid CNC control. Your Centroid controller will provide full time programmable and simultaneous motion in all 4 axis. You will be able to program your new Rotary axis from your Intercon conversational programming software or your favorite CadCam program. Can be used in the spindle up (vertical) position or with the spindle horizontal. Accepts all sizes of 5C collets including the oversized and soft jaw types. Position your work piece before machining or machine your parts in a rotary contouring mode. You can even probe and digitize while using this 4th axis indexer. Click on Store home (at the left) to see all available sizes and models. Center Height in Horizontal (mm / inch) Thru-Hole Diameter (mm / inch) Width of Guide Block (mm / inch) Overall Dimensions H / W / L (inch) Ø 1 each 5C rotary indexer head with manual collet closer. Ø 1 each Adjustable Tailstock. Ø 1 each DC single servo driver with additional fiber optic cable. Ø MS connector that will mount onto your electrical enclosure. Ø Wiring layout to follow during installation. Ø The 4th axis software unlock. Ø 4 axis upgrade of your Intercon conversational software. Available, by phone and Email. Typical Email response is less than 24 hours. Machines in Motion will provide you with any related factory technical documents as needed. Professional installation is available for this item. Ø Use standard 5C collets up to 1 1/8†I.D. for through hole material feeds. Ø Mount spindle up or Horizontal. Ø Positioning commanded from your Centroid CNC control. 5C collet set 1/8" - 1" by 1/8" increments. Set of 8 peices 5C collet set 1/8" - 1 1/16" by 1/16" increments. Set of 16 pieces 5C collet set 1/8" - 1" by 1/32" increments. Set of 31 pieces Choose this package to integrate with your Centroid CNC control using DC servo motors. If your Centroid CNC control has AC servo motors then you will need to choose this AC package. (this posting is the responsibility of the poster) |
