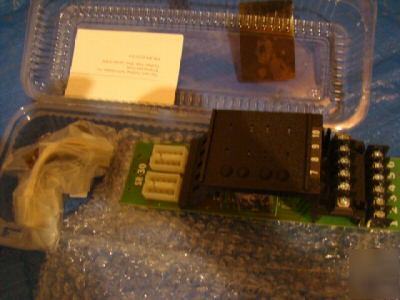

New in package Siemens SR-30 Dual Supplementary Relay Module (SPDT 3 Amp) Fire System 3TM Supplementary Relay: The supplementary relay module, model SR-30 is designed to activate or deactivate, as desired, external devices such as door releases, fan shut-down, extinguishing system release, audible alarms, etc. Actuation of the unit may come from the system control panel, a ZN or ZU zone module, an SM switching module, or any other module with appropriate alarm The module is fitted with two independent, 24 VDC relays, each of which provides a set of single pole, double throw (SPDT) contacts, rated 120 VAC or 30 Actuation for each relay is from a high resistance transistor input circuit, requiring a high going DC signal from between 12 and 24 volts above system common. Dual input actuation terminals are provided for each relay to facilitate programming. The model SR-30 is placement supervised, providing a system trouble signal upon removal from the system. The unit is Underwriters Laboratories Inc. listed. Engineer & Architect Specifications For the control of external devices, there shall be provided a Siemens Fire Safety supplementary relay This module shall be system interconnected by a tenpin plug and harness assembly and shall be operable It shall contain two independent 24 VDC relays, fitted with SPDT contacts with a rating of 3 Amp. (120 VAC or 30 VDC). Each relay shall have dual input screw terminals for flexibility of programming. Relay output screw type terminals shall also be provided on the The unit shall be placement supervised and shall be Underwriters Laboratories, Inc. listed. Current Requirement: Relays de-energized - None (this posting is the responsibility of the poster) |
