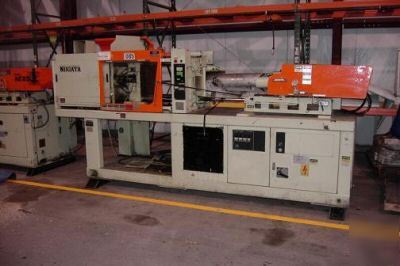

55 Ton, 2.2 Oz. Niigata Injection Molding Machine Platen Size ........................ 18.11" x 18.11" Distance Between Tie Bars .......... 12.20" x 12.20" Clamp Stroke ................................ 9.84" Minimum Mold Height .......................... 6.30" Maximum Mold Height ......................... 12.99" Ejector Stroke ............................... 2.76" Machine Dimensions ............. 155"L x 41"W x 65"H Machine Weight ........................... 6,600 lbs RJG Outlet for Process Control (this posting is the responsibility of the poster) |
ivan.howell@dfwind.com (Ivan Howell)
for more information. All emails will be forwarded to the poster's actual email address.
