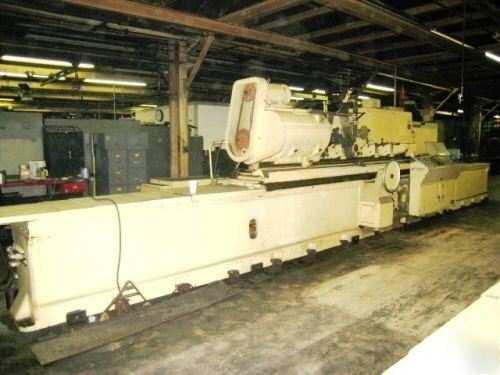

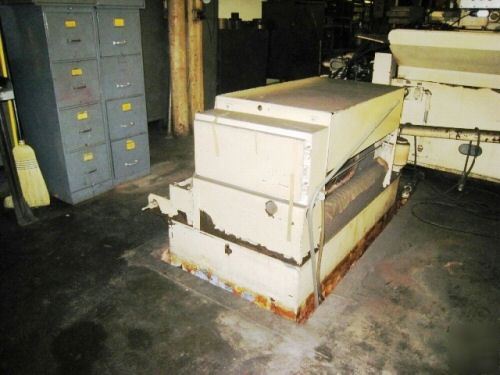

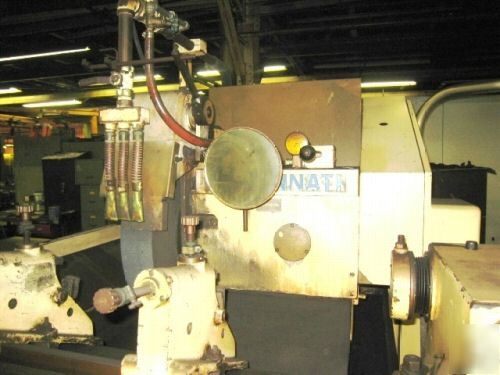

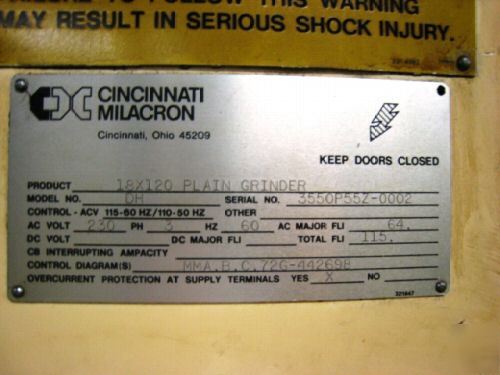

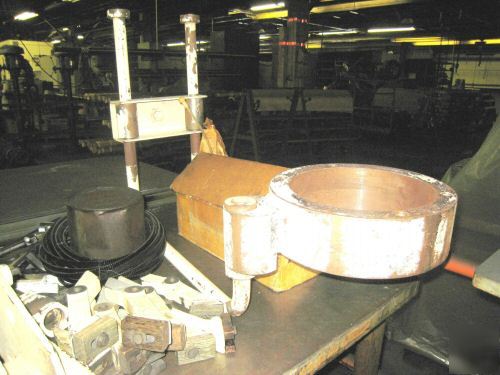

18" x 120" CINCINNATI MODEL DH PLAIN CYLINDRICAL GRINDER Serial No. 3550P55Z-0002 New 1972 Motor Driven With 20 HP, 3 Phase, 60 Cycle, Variable Speed Grinding Spindle Motor. 5 HP , 3-Phase, 6- Cycle, Variable Speed Work Head Motor. GE SP-200 Vari-Drive System. 3 HP Hydraulic Pump Motor. MD Coolant System. Automatic Lubrication System. EQUIPPED WITH: Barnes Combination Cloth Filter and Magnetic Coolant System. Hydrastatic Truing Attachment. Shoulder Grinding Attachment Mounted On Grinding Wheel Head. Extra Centers. (5) Steady Rests. Pick Feed Left, Right and Both Sides. Plunge. Gap Eliminator. Acralign II system for Adjustment of Table Angle. Infeed Sequence Lights for Location of Wheel Head. Fine Feed. Terry. Rapid In & Out Feeds. Automatic Infeed & Gage Grinding. Grinding Wheel Mounting Bracket. Leveling Pads. Max. Swing Over Table 18" (5647mm) Max. Grinding Length 120" (3400mm) Swivel of Table 1.250 Taper/Ft. Rate Power IPM 3" to 120" (76.2mm to 3048mm) Grinding Wheel Capacity 30" x 12" x 6" (762mm x .472mm x 152.4mm) (.00063mm) 0" to .009975" (0 to .2534mm) Number Dead Pass Reversal 0 to 7 Gap eliminator Rate (Approx.) .350" (8.89mm) On Dia. In Increments of .001" (.0254mm) 0" to .999" (25.374mm) In Increments of .001" (.0254mm) 0" to .099" (0 to 2.514mm) In Increments of 0001" (.0025mm) 0" to .0099" (0 to .2514mm) Stock Removal Rate Coarse .060" to .300" (1.524 to 7.620mm) Stock Removal Rate Medium .028" to .150" (.71mm to 3.810mm) Stock Removal Rate Fine .0015 to .030" (.0381 to .762mm) Tarry Spark Out .7 to 20 Seconds Rapid approach Slide Movement 4" (101.6mm) Headstock Speeds (Variable) 25 to 250 RPM Coolant Tank Capacity 150 Gal. (568 Liters) Approximate Dimensions 142" F-B x 32' L-R (3606mm x 9754mm) Approximate Height 92" (2337mm) Approixmate Weight 47,165 Lbs. (101,777 Kg.) (this posting is the responsibility of the poster) |
