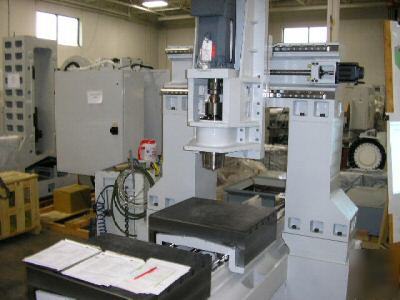

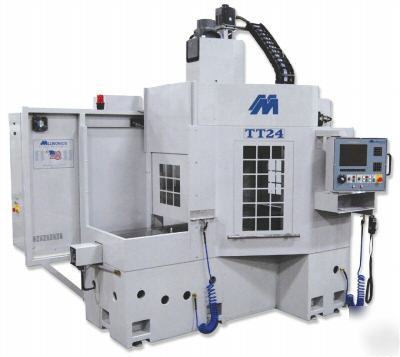

TT – Twin Table Machining Center Pricing Effective March 1, 2006 Rev. A Standard Travel of Each Table, XYZ Spindle Taper, RPM Spindle Size, Horsepower 1 minute / 30 minutes * #40, 70 mm, 10,000, 24/15 18/11 kw Two Speed * In-line Spindle/Motor Assembly Optional Horsepower 1 minute / 30 minutes · Heavily Ribbed Cast Iron Construction · 35 mm Linear Ways with Metal Way Cover on X · Precision Ground High Speed Ball Screws and Table Surface · Double Tables with Dual Part Load Areas · Automatic Metered Lubrication on Y & Z (X, X1 Grease) · High Torque Fast Ramp AC Digital Servo Drives · 10,000 RPM, 70mm (I.D.) Bearing Air Purged Spindle · Spindle Taper Blow-out with Tool Release Push Button · Chip Drawer Chip Removal System with Optional Conveyor · Full Metal Enclosure with Automatic Doors and Work Lamp · TT24 has 24 Carousel or Optional 24 Pocket Double Arm ATC TT40 has 24 Pocket or Optional 30 Pocket Double Arm ATC · Two Speed 24/15 HP 18/11 kw Closed Loop WYE/Delta High Torque Vector Spindle Drive System · High Torque AC Digital Servo Drives · PC-based Centurion 7 CPU includes 2 Mb Parts Storage Memory Non-volatile motionless disk · 12" LCD Active Matrix Color Display with Discrete KeysTT40 · Conversational plus G & M Code Programming · 3-D Part and Tool Path Graphics · 6 Mb Virtual Disk / RS-232 with DNC Buffer · 1200 Block/Sec High Speed Processor · Auxiliary Keyboard Port for PC Keyboard · Automatic Home Sequence with Home Switches · Dual Table Software Control for Doors and Double Table · Dual Table Ready Switch and E-stop · All Axes Laser Calibrated and Ballbar Inspected Front Panel Mounted Electronic Handwheel plus Handwheel Controlled Program Execution Chip Conveyor to Replace Chip Drawers Engraving, Helical Interpolation, Auto Routines, and User-definable Macros with Trig Assist TT24 Upgrade from 24 Pocket Carousel to Coordinate Rotating, Scaling, Mirror Image, Thread Mill TT40 Upgrade to 35/25 HP 26/18 kw Off-line FastCAM Software for Programming and Training 8 Mb Program Execution Memory with Large Program Management Software Items may be purchased separately Items may be purchased separately Solid State, Non-Volatile, Memory Upgrade to 256 Mb Multi Format Flash Memory Card Device Additional 10 Mb Parts Storage Memory (12 Mb total) Networking Option includes 30 Days Phone Support Recommend 256 Mb Option Six Nozzle High Volume Multi-Height Flood Control System with Through Head Cooling and Flood Pan “S†Curve Accel/Decel Ramp Modifier with Feed Forward and Look-Ahead for High Speed Machining or 3-D Milling Additional 16 Mb Program Execution Memory. Allows editing of 10 Mb programs Auto Import of DXF Files Conversion Software Items may be purchased separately Items may be purchased separately PREMIER PACKAGE E - For Package Pricing Package A, B, C & D is Required Convert Linear Ball Ways on X, Y & Z Axes to Linear Roller Ways (standard on TT40) Patent Pending Thermal Control System (TCS) Thermal Ball Screw Compensation on X, X1 & Y Axes Patent Pending Thermal Control System (TCS) Thermal Ball Screw Compensation on Z Axes Spindle Chiller Loop Reduces flood system to two nozzles. Items may be purchased separately Optional Tool Holder BT-40 or DIN 69871 Upgrade to 30 Pocket Doubl Arm ATC – TT40 Only Upgrade to 15,000 RPM Ceramic Bearing Spindle from 10,000 RM Upgrade to 35/20 HP 26/15 kw from 24/15 HP 19/11 kw on TT24 (see Package C for TT40) Coolant Through Spindle – 300 PSI Low Pressure System – Requires Purchase of 70 mm Spindle Upgrade and Arm ATC Recommended. Includes drawbar assembly for ANSI retention knobs and rotary coupling. Coolant Through Spindle – 700 PSI Complete System Recommended. Includes drawbar assembly for ANSI retention knobs and rotary coupling. Coolant Through Spindle Ready Kit - Includes drawbar assembly for ANSI retention knobs and rotary coupling. Does not include pumps or external coolant tank. GRAPHITE AND ABRASIVE MATERIAL ACCESSORIES Torit Vacuum System Model DFT2.2MILL (Consider Environmental Noise) Dust Collection System — Consult factory Programmable Spray Mist On/Off Programming Manual in Electronic Format on CD Voltage 208-240 Single Phase May reduce spindle power by up to 20% Transformer for 400-440V, 20 KVA CE Code Required for European Union Countries Extended Parts Warranty from One to Two Years Factory Start-up and Training On Site, U.S. only Includes travel expenses Training at Milltronics Includes lunches, training, materials and manual TT - Twin Table Machining Center Specifications Effective March 1, 2006 Rev. A Bridge Design with Dual Tales on One Set of Ways Table Travel in Work Zone X and X1 Axes SPINDLE – Direct Drive In-line Spindle/Motor Assembly Heavy Duty 70 mm Spindle Cartridge Assembly with Duplex Bearing Design Spindle Horsepower Two Speed WYE/Delta 1 minute / 30 minutes Optional Spindle Horsepower Two Speed WYE/Delta 1 minute / 30 minutes Standard Duplex Bearing Spindle RPM Optional Ceramic Duplex Bearing Spindle RPM Requires balanced tooling, recommend horsepower upgrade Coolant Through Spindle Option (CTS) Requires ANSI Style Retention Knobs CTS – Additional Coolant Capacity Standard flood tank capacity with 300 psi system 1/4 HP Flood Pump Capacity Optional in Package B Power 208-240 VAC 50-60hz, 3Ø 24/15 HP 18/11 kw Power 208-240 VAC 50-56hz, 3Ø 35/25 HP 26/18 kw Power 208-240 VAC, Single Phase Parts: One year or 2100 hours, whichever occurs first on all normal failures. Service: One year or 2100 hours (whichever occurs first) from dealer or available from factory during second six months if air ticket supplied Extended Parts Warranty for Second Year Parts warranty for normal failures for up to two years or 4200 hours, whichever occurs first. Measurements performed with Renishaw laser and ballbar systems. Measurements are linear over entire travel Temperature changes and table loads may affect tolerances. Tolerances are guaranteed over 10" sq. area. Centurion features covered under separate literature. For machine duty rating, see "Truth in Specifications" on www.milltronics.net. Milltronics reserves the right to change specifications at any time without incurring obligation. (this posting is the responsibility of the poster) |
shanna-pitts@dfwind.com (Shanna Pitts) for more information. All emails will be forwarded to the poster's actual email address.
