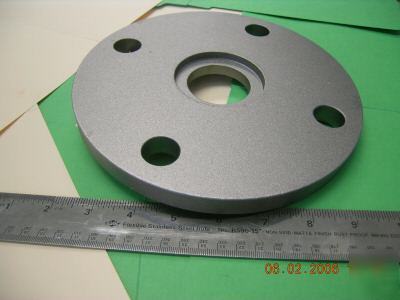

These 5/8" thick A36 plate steel bases would be perfect for base mounting feet for fabricated machines or equipment. As you can see they are round and have four 7/8" diameter holes drilled symmetrically on a 6 1/2" diameter pattern at 90 degrees separation from each other. The overall diameter of these bases is 8 5/16" with a center hole drilled at 1 7/8" diameter with a 2 5/8" diameter relief drilles 1/4" in around the center hole. This could ideally be used to center a 2" nominal pipe on these pads.
