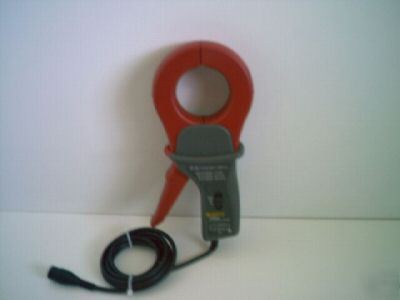

* The Fluke i1000s is a portable 1000 Arms oscilloscope probe intended for use in industrial and power environments. The unit permits analysis and measurement of current waveforms and harmonics. Millivolt output proportional to current magnitude allows for direct display of the waveform on an oscilloscope via a coaxial cable terminated with an insulated BNC connector. * Current Range: 100mA to 1000 Arms * Basic Accuracy 48Hz to 65Hz: 10A Range +/- 3% of reading + 0.1A, 100mV/A output 100A Range +/- 2% of reading + 0.5A, 10mV/A output 1000A Range +/- 1% of reading + 1A, 1mV/A output * Working Voltage: 600V AC rms * Maximum Conductor Size: 54 mm (2.13 inch) diameter * Safety Rating: 600V rms. CAT III per IEC 1010-02-032 RETURN POLICY: 30-Day Full Refund * United States Postal Service Priority Mail * Two (2) - Three (3) Day Delivery * Additional Charge for Alternate Carriers. * Additional Charge for Express - Next Day (this posting is the responsibility of the poster) |
G.moss@dfwind.com (Gina Moss) for more information. All emails will be forwarded to the poster's actual email address.
