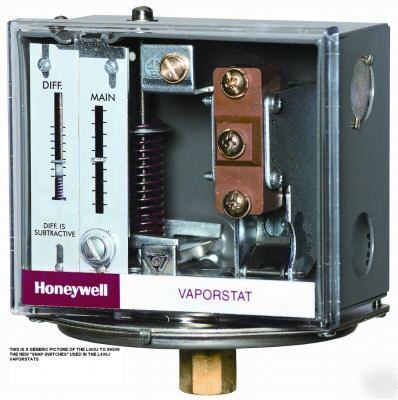

Provide operating control and automatic high limit protection for vapor heating systems with pressures up to 4 psi (8 kPa). All models have Microswitch snap switches to open or close a circuit on a pressure rise. • Stainless steel diaphragm for use with liquids, air, noncombustible gases, ammonia, oxygen, distilled water and similar media. • Clear plastic cover allows observation of the pressure settings. • Mount using hexagonal fitting with 1/4 in. NPT internal threads for direct mounting to the 14026 Steam Trap (siphon loop), which is included. Vaporstat® Controllers, 0 oz/in2 to 16 oz/in2 Provide operating control and automatic limit protection for pressure systems with pressures up to 4 psi (8 kPa) 1/4 in. NPT internal thread or surface mount through back of case SPDT make R-W, break R-B on pressure rise Pipe Connections, Main or High Pressure 5 1/8 in. high x 4 1/2 in. wide x 4 1/2 in. deep. 130 mm high x 114 mm wide x 114 mm deep. Switch Contact Ratings (120 Vac) 8.0 AFL, 48.0 ALR, 10.0 A resistive Switch Contact Ratings (120 Vdc) 2.4 AFL, 24.0 ALR, 5.0 A resistive Switch Contact Ratings (240 Vac) 5.1 AFL, 30.6 ALR, 5.0 A resistive Switch Contact Ratings (240 Vdc) 1.0 AFL, 10.0 ALR, 2.0 A resistive Approvals, Underwriters Laboratories Inc Listed: File No. MP466, Guide No. MBPR Approvals, Canadian Standards Association Certified: File No. LR1620, Guide No. 400-E-O Approvals, Industrial Risk Insurers (this posting is the responsibility of the poster) |
