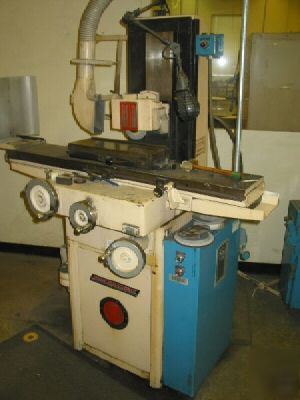

HORIZONTAL-SPINDLE SURFACE GRINDER New 1970, Serial No 18956, Model 618HR, 6" x 18" Walker "Ceramax" Permanent-Magnetic Chuck "Rollerway" Roller Mounted Table 1 HP Reid Direct Drive Spindle Table Dimensions Overall, W x L.......... 8" x 51" Grinding Width Capacity, Maximum......... 6" Grinding Length Capacity, Maximum........ 18" Longitudinal Table Travel, Maximum....... 20" Cross Saddle Travel, Maximum............. 20" Grinding Wheel to Table, Maximum......... 15" Grinding Wheel Diameter, Standard........ 7" Grinding Wheel Width, Standard........... 0.5" Grinding Wheel Hole Diameter............. 1.25" Grinding Wheel Spindle Motor............. 1 HP Electrical System........................ 220-440/3/60 Floor Space Required, L x D.............. 5'11" x 3'10" Overall Height........................... 5'8" Weight, Approximately.................... 15250 LBS PRICE: F.O.B. OUR WAREHOUSE............. $1,750.00 All machines/equipment subject to prior sale. (this posting is the responsibility of the poster) |
j.garza@dfwind.com (Jane Garza) for more information. All emails will be forwarded to the poster's actual email address.
