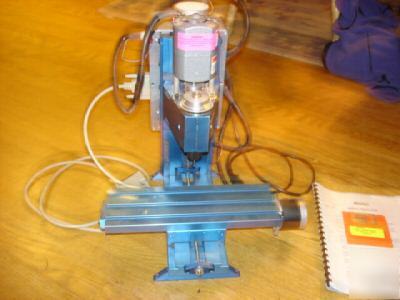

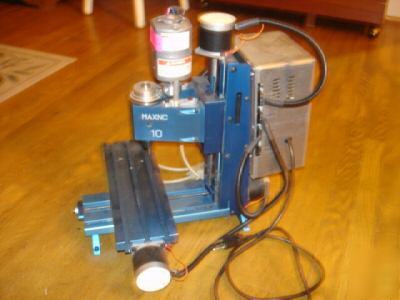

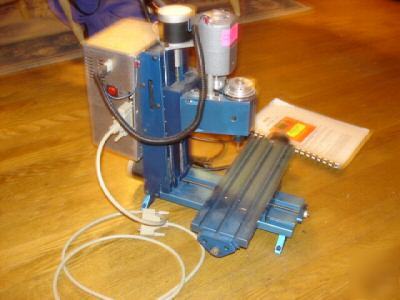

This is a Used machine with low hours on it. Up graded to larger machines and don't need this one any more. ALso comes with the MaxNC software and the Printer cable to hook to the computer. Below is the spec sheet on the machine. Bringing the power of modern CNC machining to model engineers, machinists, hobbyist, inventors and students. Controlled from the printer port of any PC compatible computer. Build in the U. S. A. by MAXNC.This is not a retrofit. · 8" X Travel · 5" Y Travel · 6" Z Travel · 4" wide dovetails · 11.9" long x 4" wide table · Heavy duty spindle. NEW 2005 OPEN LOOP CONTROL with the following FEATURES:· Spindle ON, OFF and SPEED control from the software · Input for Digitizer or TOOL SETTER · Drivers for 4 axes from a single parallel port · Auxiliary output for M8 (coolant pump) · 3 times the power and speed of the previous Maxnc open loop machines. Operates with the MAXNC 2005 OPEN LOOP driver software for DOS or with other independent driver software programs like the Mach 2 for Windows XP. The Maxnc Open Loop software includes the following features: · "G" & "M" code programming · 0.00012" resolution · Linear interpolation · Circular interpolation · Helical interpolation · Backlash compensation · Keyboard jog mode · Automatic cycle · Step cycle · Tool length Compensation table · Screen plot of program and more. Includes the MAXNC software package with a mini CAM system for automatic NC program creation from CAD. Optional probe for 3d digitizing. G3 Circular Interpolation C'CW G65 Continuous Contouring cancel G3 Circular Interpolation C'CW COMPUTER REQUIRMENTS: For the Maxnc software, a PC computer with DOS OPERATING SYSTEM in a CLEAN, BASIC configuration with no other programs running in the background (Windows 95 and 98 are ok.). Standard parallel port is required. Note: To operate the machine from a Windows XP computer, we recommend purchasing the MACH 2 software from Artsoft Inc. (this posting is the responsibility of the poster) |
Melissa-nelson@dfwind.com (Melissa Nelson) for more information. All emails will be forwarded to the poster's actual email address.
