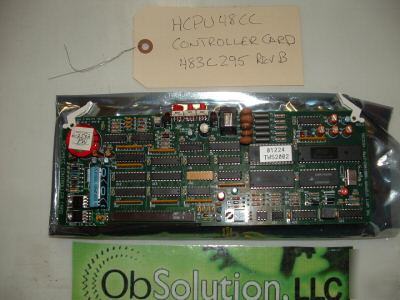

WORKING TAKEOUT FROM DE-COMMISSIONED PANEL Specifications: LIST PRICE $1270.00 The Watt Stopper’s Controller card and Input/Output cards are for use in Complete Control (CC) lighting control panel systems. They operate a single CC panel that contains up to 48 relays and 14 programmable switches. The Controller card (HCPU48CC) provides the essential intelligence for each CC panel, with operating scenarios and logic functions. Programmed via the software package WinControl, the card contains all of the functionality necessary to control lighting down to the individual relay level. Required for each panel, the Controller card enables distributed processing. This means that the panel can continue to function as programmed even in the event that dataline communications with other system panels are interrupted. The Controller Card supports communications over its RS-232 port and connected dataline. In addition to its control functions, the Controller card stores all relay runtime and status information. To prevent loss of operating data from power interruptions, it features built-in memory and clock backup capabilities. The Complete Control I/O cards (HIOC12CC) are required to provide automatic control and monitoring capability for CC panel relays. Each I/O card enables the automatic operation and monitoring of up to 12 relays in a Complete Control panel. Each I/O card also enables the operation of three programmable system switches in a CC panel. The number of I/O cards that a single panel can hold corresponds to the panel size. A 12 relay panel holds just one I/O card, a 24 relay panel holds two, and a 48 relay panel holds four I/O cards. These cards easily plug in to the corresponding panel interior for simple installation. With the I/O cards installed, the CC system constantly monitors the status of the relays to detect changes in the relays’ ON/OFF state. Any change in a relay is reported to the Complete Control system so that occupant sensitive lighting control scenarios may be implemented without compromising the reliability of direct switch to relay control. The HCPU48CC Card, in conjunction with one or more HIOC12CC Input/Output Cards, provides the distributed intelligence for each panel. The HCPU48CC provides the intelligent operating scenarios, logic functions and communications for a Lighting Control Panel with up to 48 relays. The HIOC12CC Card turns the relays ON/OFF and monitors their status. Each HIOC12CC is associated with a bank of 12 relay outputs and 3 programmable system switch inputs. (HIN__12CC) 1 HCPU48CC 1 HIOC12CC (HIN__24CC) 1 HCPU48CC 1-2 HIOC12CCs (HIN__48CC) 1 HCPU48CC 1-4 HIOC12CCs Complete Control intelligence cards feature: • Plug-in modular configuration. • Direct relay switching. Each relay in the panel may be controlled directly with a switch or occupancy sensor. • Runtime and status information for all relays. • Memory backup during power outages. • Built-in programmable lighting scenarios for panels up to 48 relays. • RS232 and Dataline communications ports, with change-of-state annunciation. • Two programmable switch inputs per panel. • 12 relay control outputs. Up to 3 relays may be wired in parallel per output. • Relay status monitoring. Monitors the pilot contacts on each relay to provide true status indication. • Three programmable system (global) switch inputs per card support global control of relays in a networked system. (this posting is the responsibility of the poster) |
