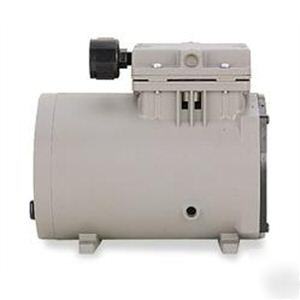

Piston Compressor/Vacuum Pump, Power Rating 1/8 HP, Voltage Rating 115 Volts, Current Rating 3.1 Amps, NPT Inlet (F) 1/4 Inch, NPT Outlet (F) 1/4 Inch, Frequency 60 Hz, Maximum Intermittent Pressure 100/100 PSI, Free Air Flow @ 10 PSI 0.69 CFM, Free Air Flow @ 10 Inches Vacuum 0.47 CFM, Free Air Flow @ 100 PSI 0.07 CFM, Free Air Flow @ 15 Inches Vacuum 0.31 CFM, Free Air Flow @ 20 PSI 0.59 CFM (F)NPT Inlet (In.)1/4 (F)NPT Outlet (In.)1/4 ApplicationAeration, Photographic Processing, Business Machines, Packaging, Beverage Dispensing and Various OEM, Requiring Intermittent and Continuous Duty Cylinder MaterialAluminum Free Air CFM @ 50 PSI0.37 Free Air CFM @ 0 PSI0.78 Free Air CFM @ 20 Vac (in Hg)0.16 Full Load Amps3.1 Height (In.)6 7/8 Hz60 ItemCompressor/Vacuum Pump Max. PSI Cont./Int.100/100 Max. Vacuum (Hg)25.6 Motor TypeShaded Pole, Thermally Protected with High Torque Start Winding Sound Rating63 dbA at 60 psi Voltage115V Width (In.)5 Cylinders1 DesignLap Joint Piston Ring FinishGray Free Air CFM @ 100 PSI0.07 HP1/8 Length (In.)8 RatingContinuous Duty RPM1750 ValveCorrosion-resistant Sandwich TypePiston Air Weight11.00
