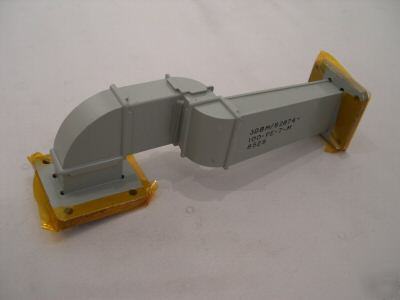

Waveguide transition, 90 deg. angle WR112-WR90 converter This waveguide section transitions from 1.122 x 0.497 down to 0.900, 0.400, which to me means it is a WR112 to WR90 converter. The specs for each size are: * EIA: WR112/RG51; RCSC: WG15; Dimentions in inches: 1.122 x 0.497; 7.05 to 10.00 GHz * EIA: WR90/RG52; RCSC: WG16; Dimentions in inches: 0.900 x 0.400; 8.20 to 12.4 GHz The side of the unit with the quick 90 degree bend is the WR112 end. This unit looks to be government surplus, and is in good used condition. There are 3 units available, each is a little cosmetically different. Sorry about the metric pictures and the english sizing, I didn't know which one they were measured in when pictures were taken. Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The unit is sold untested but is guaranteed NON-DOA with a 7 day ROR. CO STATE RESIDENTS: All items won by Colorado residents will be subject to 3.7% sales tax. (this posting is the responsibility of the poster) |
