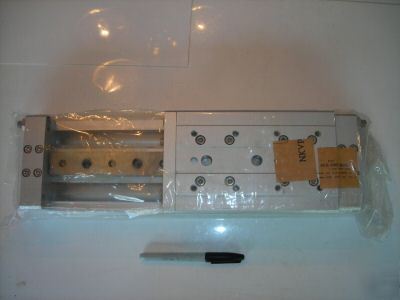

Brand New SMC Long Stroke Linear Guide Slide Air Table Also known as Linear Thruster or Pneumatic Slide Dual Rod Construction, Slim Design Provides Twice the Force of a standard cylinder 25mm 1" Bore Built in Twin (2) Air Cylinders, 150mm 5.9" Stroke, 30mm Rail Guide with Recirculating Ball Bearing Slide Standard Urethane Bumpers with Adjustable Stops 100 psi Max. or 7 bar, Ports are 1/8 Metric or G1/8 Table is 125mm 4-15/16" by 209mm or 8-1/4" Long including end cap For more info please go to the SMC catalog at this site http:// /CC_catalogs/smc/pdf/mxw.pdf Plourde Tool Box Bargins makes no representation of any item(s) sold to be fit for a particular purpose and assumes no liability for its use or misuse. It is assumed that the unit(s) will be installed and operated by qualified personnel. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental (this posting is the responsibility of the poster) |
