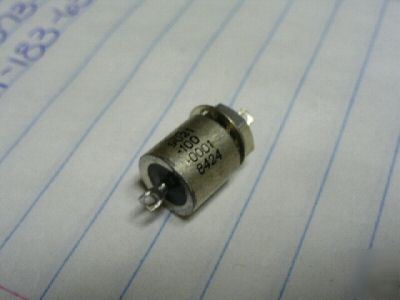

SOURCE IMPEDANCE RATING PER FUNCTION - 50.0 OHMS BLANK LOAD IMPEDANCE PER FUNCTION - 50.0 OHMS BLANK OPERATING VOLTAGE RATING AND TYPE PER FUNCTION - 100.0 VOLTS DC BLANK OPERATING CURRENT RATING PER FUNCTION IN AMPS - 15.0 BLANK MAXIMUM VOLTAGE DROP PER FUNCTION - 0.05 VOLTS DC BLANK INCLOSURE TYPE - HERMETICALLY SEALED FUNCTIONAL TERMINAL TYPE AND QUANTITY - 1 TAB, SOLDER LUG INPUT, 1 TAB, SOLDER LUG OUTPUT STYLE DESIGNATOR - 9 ROUND TERMINAL/TERMINALS ON OPPOSITE SURFACES OVERALL LENGTH - 0.908 INCHES MAXIMUM BODY LENGTH - 0.372 INCHES NOMINAL BODY OUTSIDE DIAMETER - 0.375 INCHES NOMINAL MOUNTING FACILITY TYPE AND QUANTITY - 1 THREADED BUSHING MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR - UNF NOMINAL THREAD SIZE - 0.250 INCHES III PRINCIPAL CIRCUITRY TYPE PER FUNCTION - INDUCTANCE-CAPACITANCE BLANK III MAXIMUM DIELECTRIC WITHSTANDING DC VOLTAGE - 200.0 VOLTS AT SEA LEVEL III VIBRATION RESISTANCE RANGE IN HERTZ - 10.0 TO 2000.0 III OPERATING TEMP RANGE - -55.0 TO 125.0 DEG CELSIUS III END ITEM IDENTIFICATION - RECEIVER-TRANSMITTER,RADAR RT-1157A/APX-100(V) (this posting is the responsibility of the poster) |
