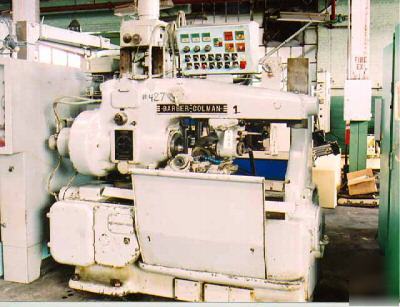

NO. 14-15 BARBER COLMAN HEAVY DUTY FULL CYCLING HYDRAULIC GEAR HOBBING MACHINE Motor Driven With 10 HP, 3/60 AC Main Drive Motor. 5 HP, 3/60 AC Free Standing Hydraulic Unit. Electrical Control Cabinet. Operators Master Control Station With Cycle, Workslide Raise And Lower, L & R, Setup Auto, Stop & Start Selectors. Crowning. Differential. Variable Hydraulic Feed. Automatic Double Cut. Auto Feed-Change Control. Auto Hydraulic Cycling. Approach, Rough & Finish Rates. Worklisde Power Clamping. Workslide Raise & Lower. Auto Hob Shifting. Hob Reversing. Time Delay For Finishing Blind Cuts. Change Gears. Double Thread Index Worm. Tailstock And Center. Trabon "WSC" Lubrication System. Coolant. Chip Conveyor. Maximum DP and Diameter in Steel 1 Cut 3.5 DP on 4" Dia, 6 DP on 14" Dia. Maximum Rated Work Diameter 14" Maximum Travel of Hob Slide 15" Maximum Distance Work Spindle Face to Tail Center 27.25" Distance C/L of Work Spindle to C/L of Hob Spindle Max. 18.5" Distance C/L of Work Spindle to C/L of Hob Spindle Min. 3.5" Distance C/L of Work Spindle to C/L of Hob Spindle Max. 9.75" Distance C/L of Work Spindle to C/L of Hob Spindle Min. 2" Distance C/L of Work Spindle to Bottom of Overarm 7.25" Maximum Swivel Setting 50 deg. (this posting is the responsibility of the poster) |
